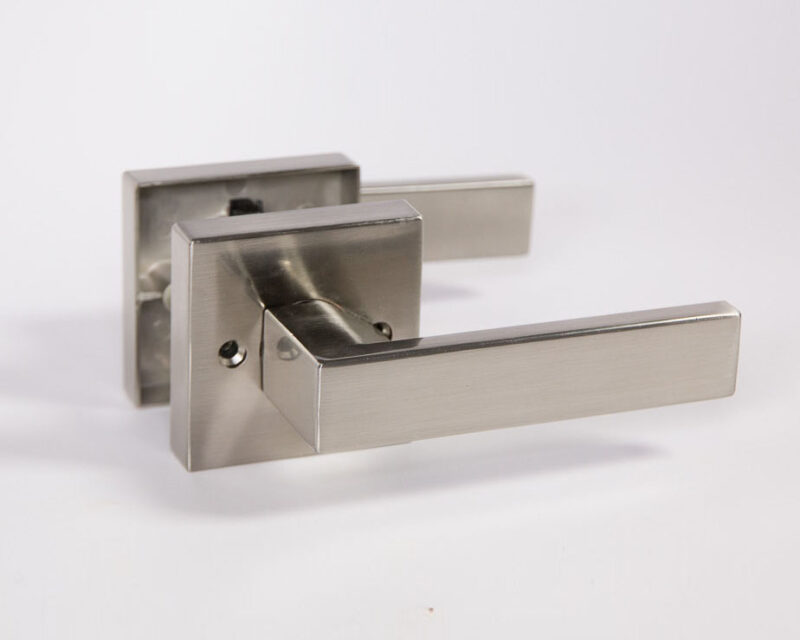

Lisbon Door Handle Lever Set with Square Rosette

$32.00 CAD$59.00 CAD

5.00 out of 5
Clear
complete the set

Description

Product Demonstration and Installation for Modern Square Levers with Square Rose

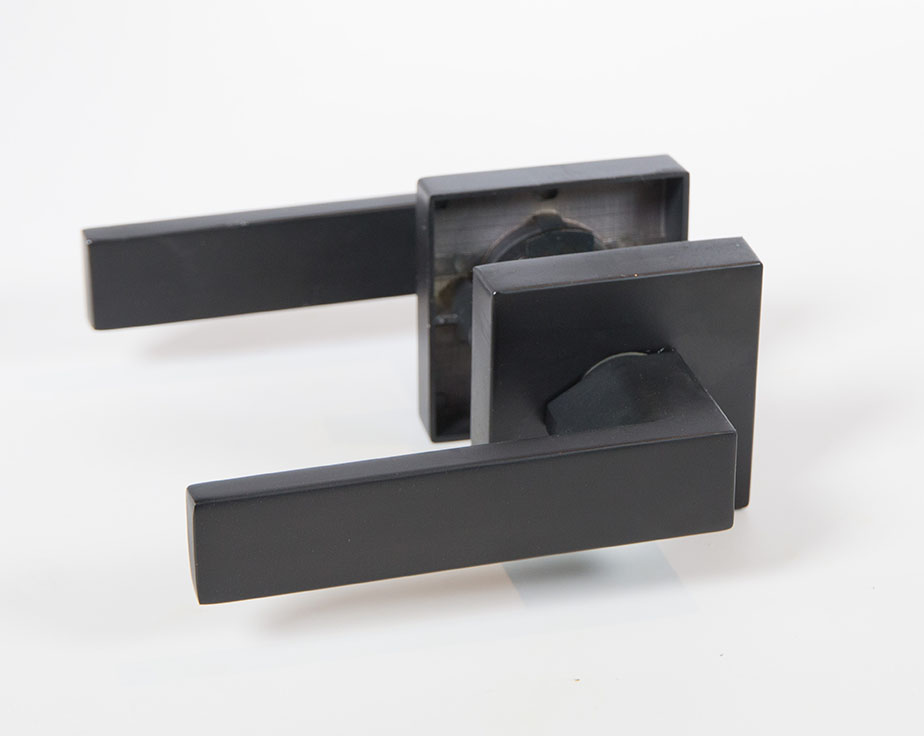

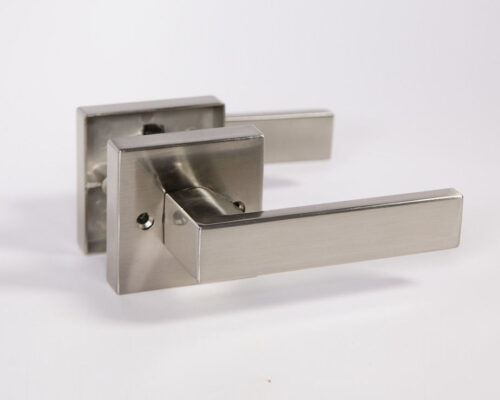

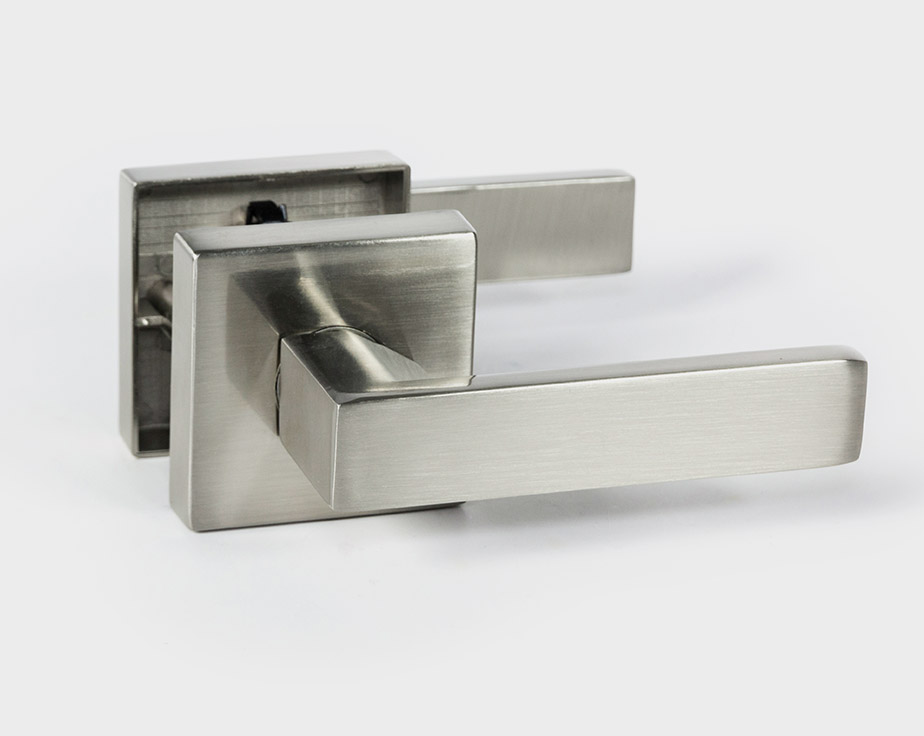

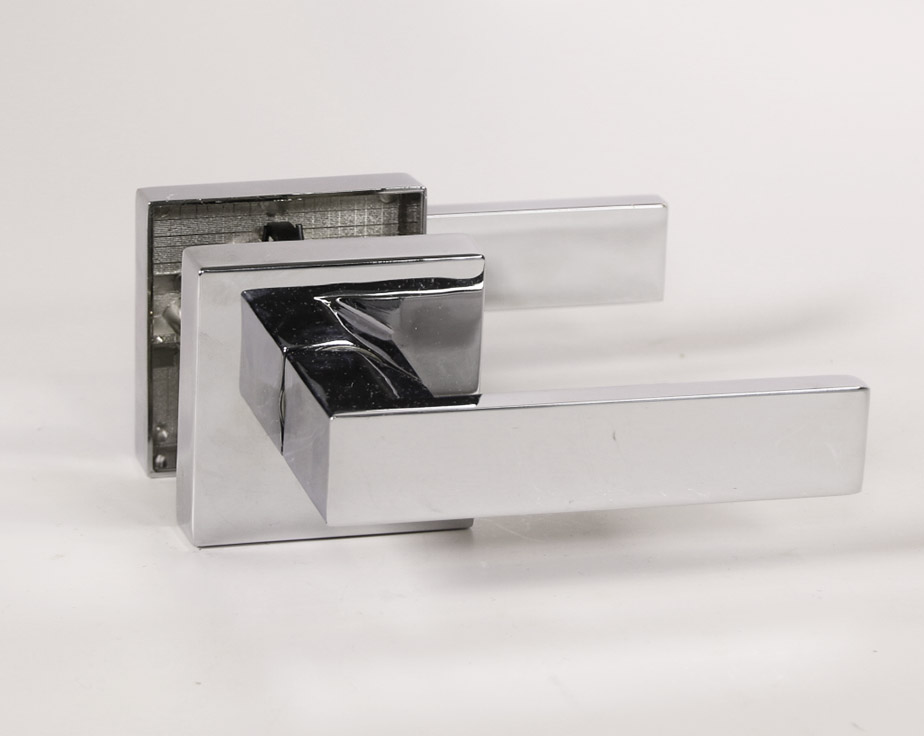

Passage – for use on interior doors where a locking feature is not required (e.g. bedrooms or hallways).

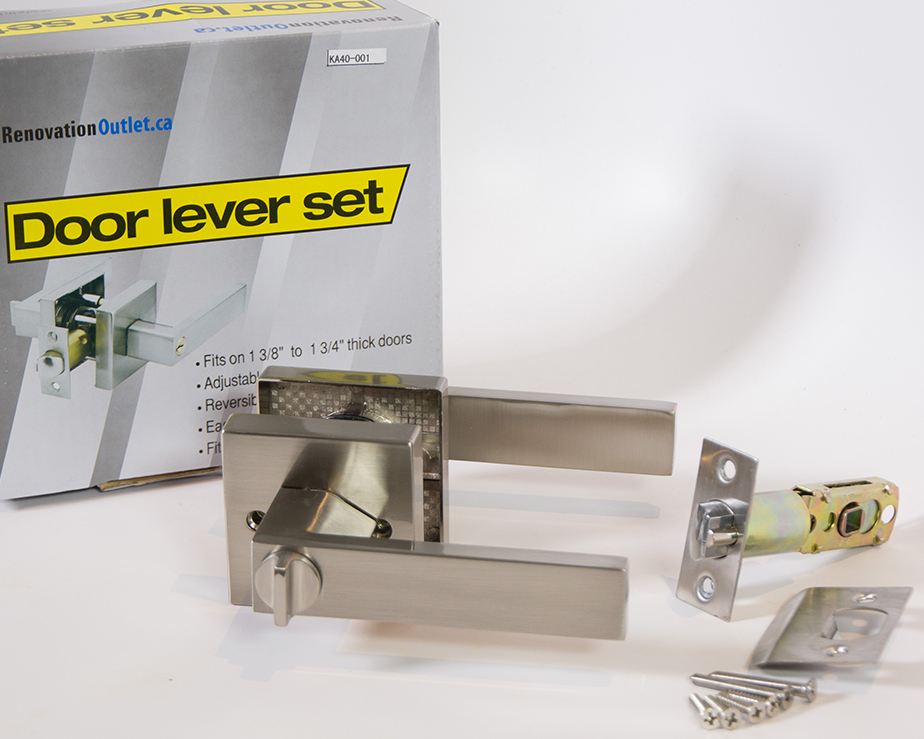

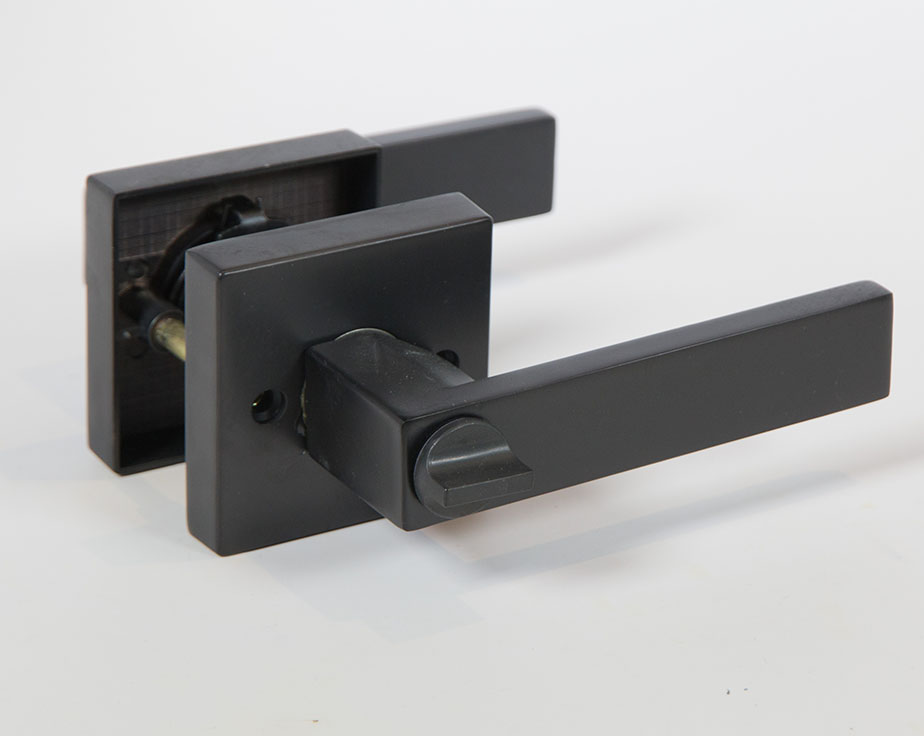

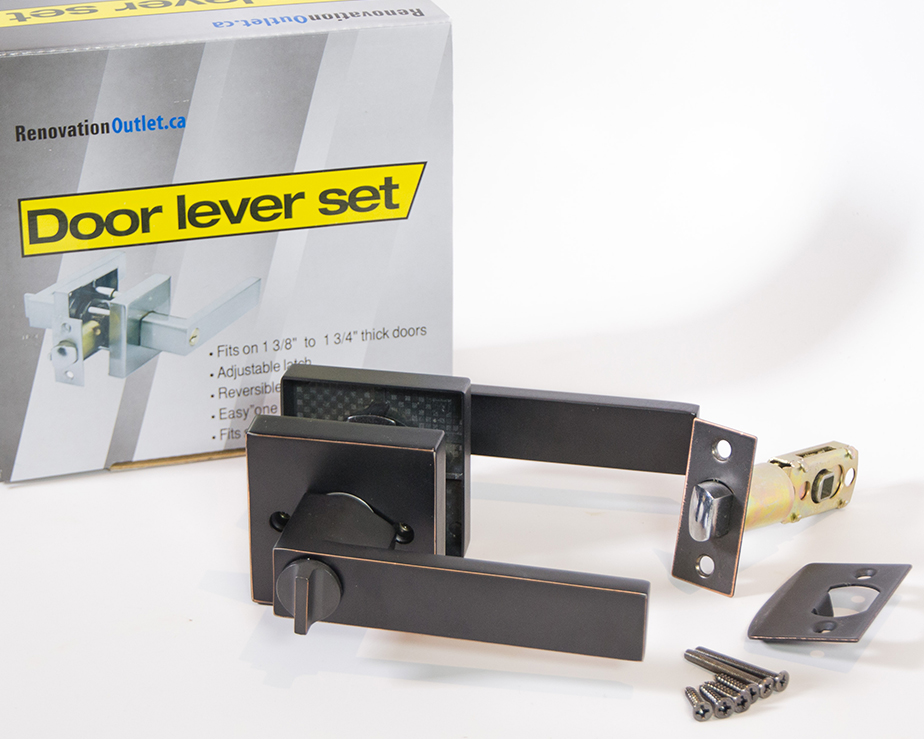

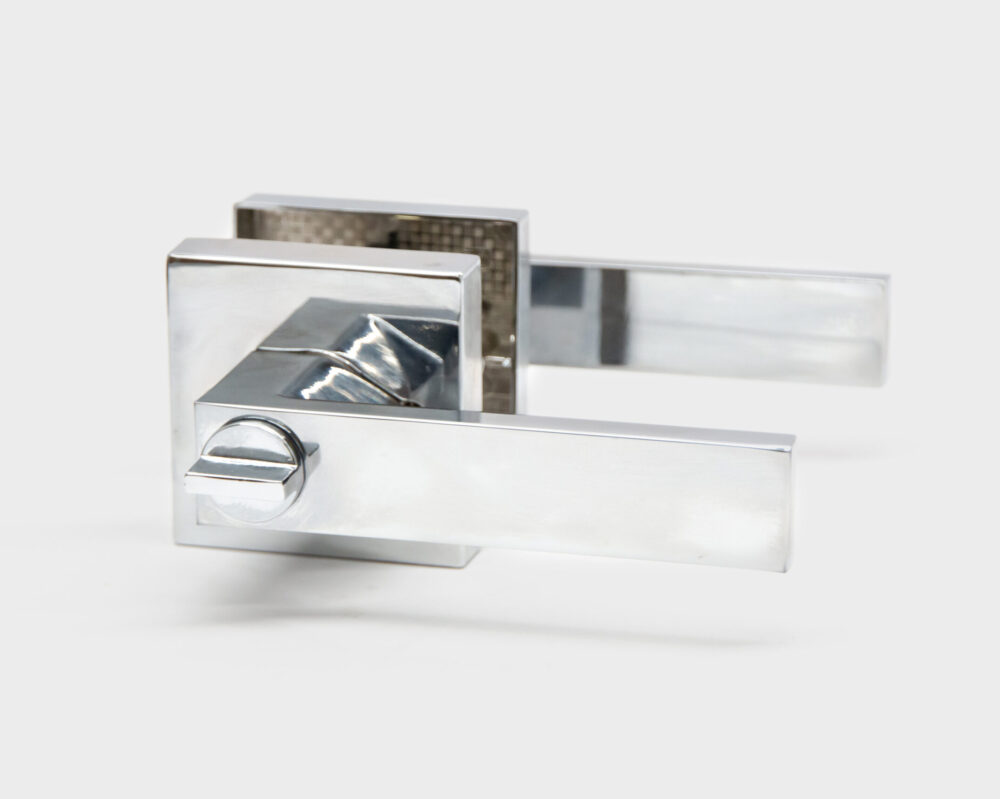

Privacy – for use on interior doors where a privacy locking function is required (e.g. bathrooms).

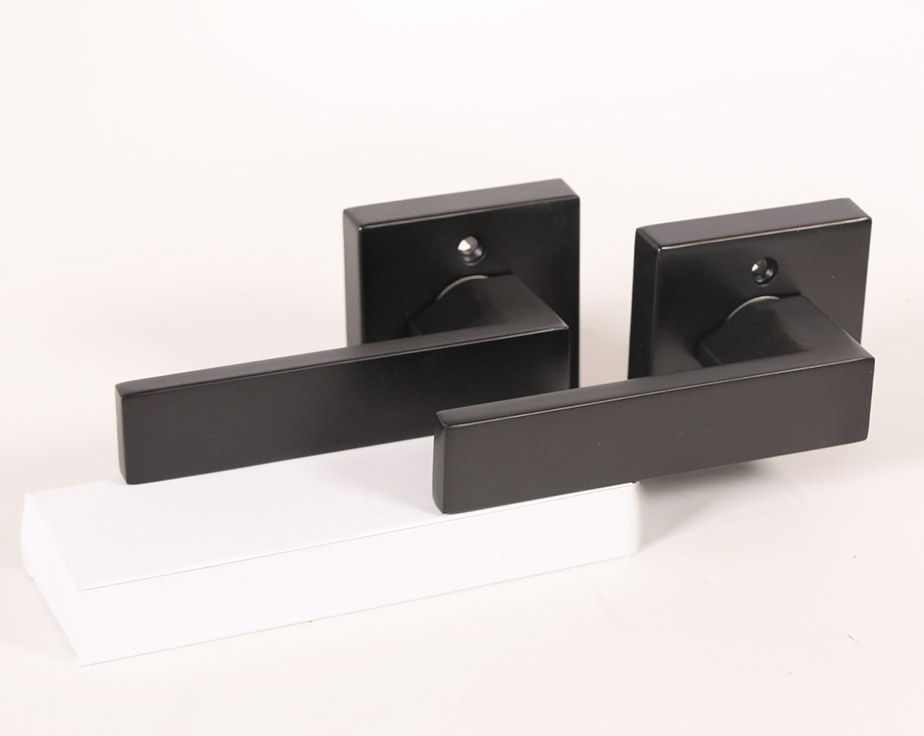

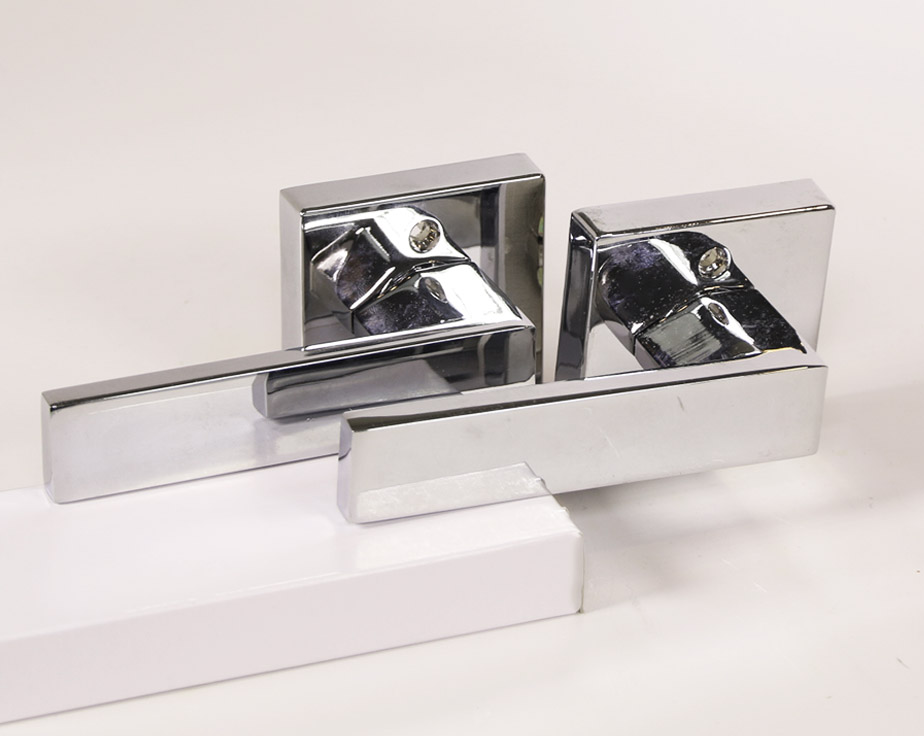

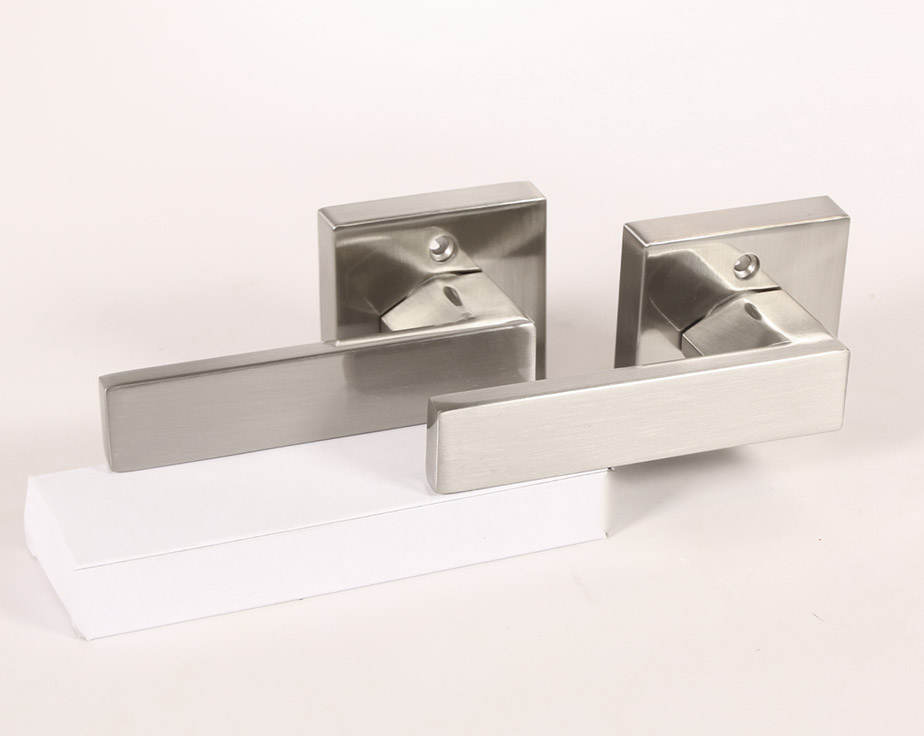

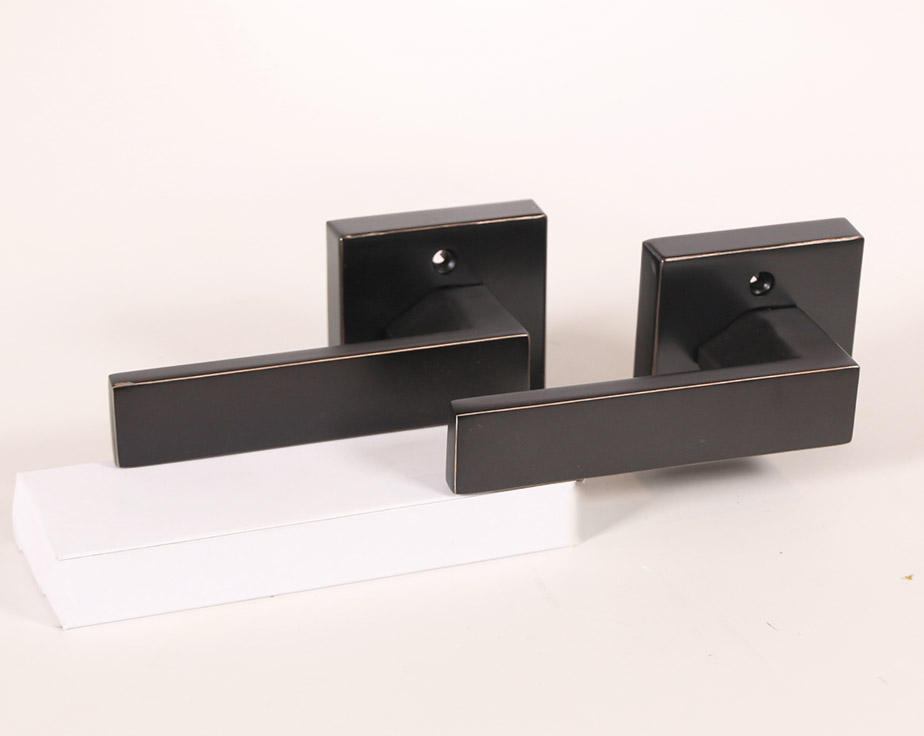

Dummy – for use on interior door where a pull/push function is required (e.g. closet). Comes as set of 2 handles.

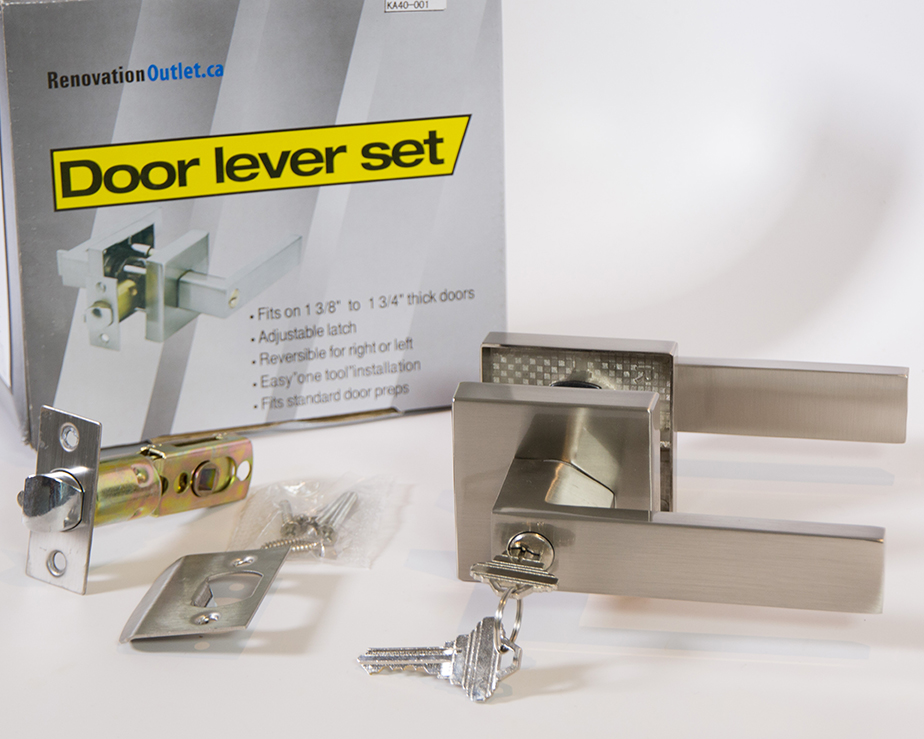

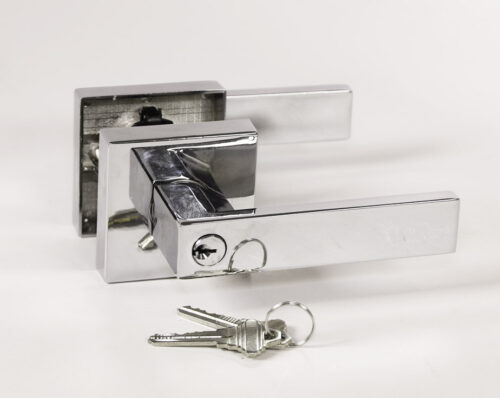

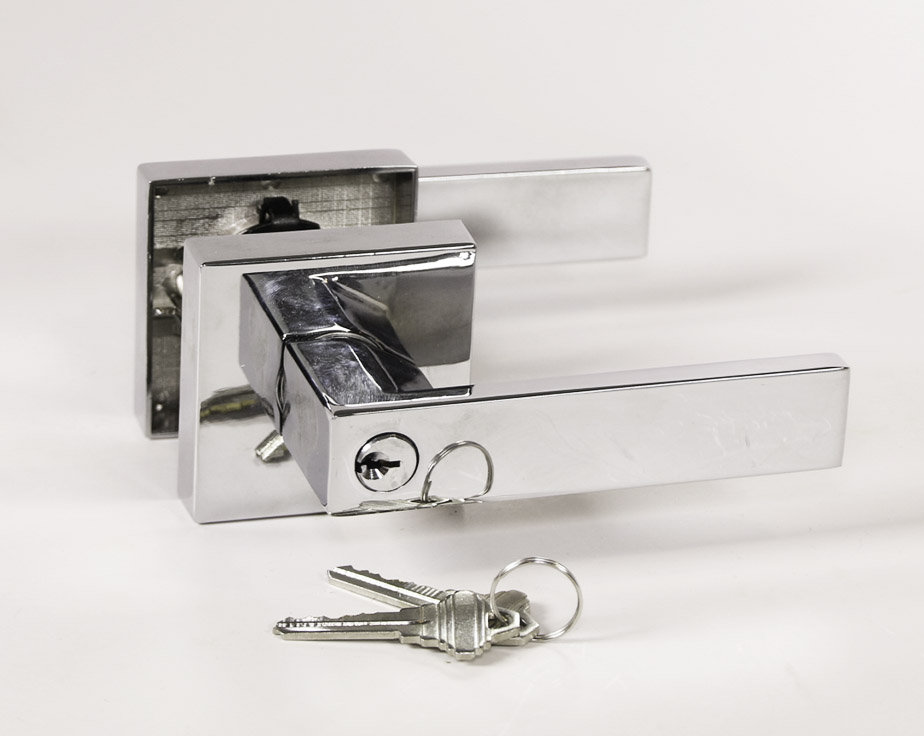

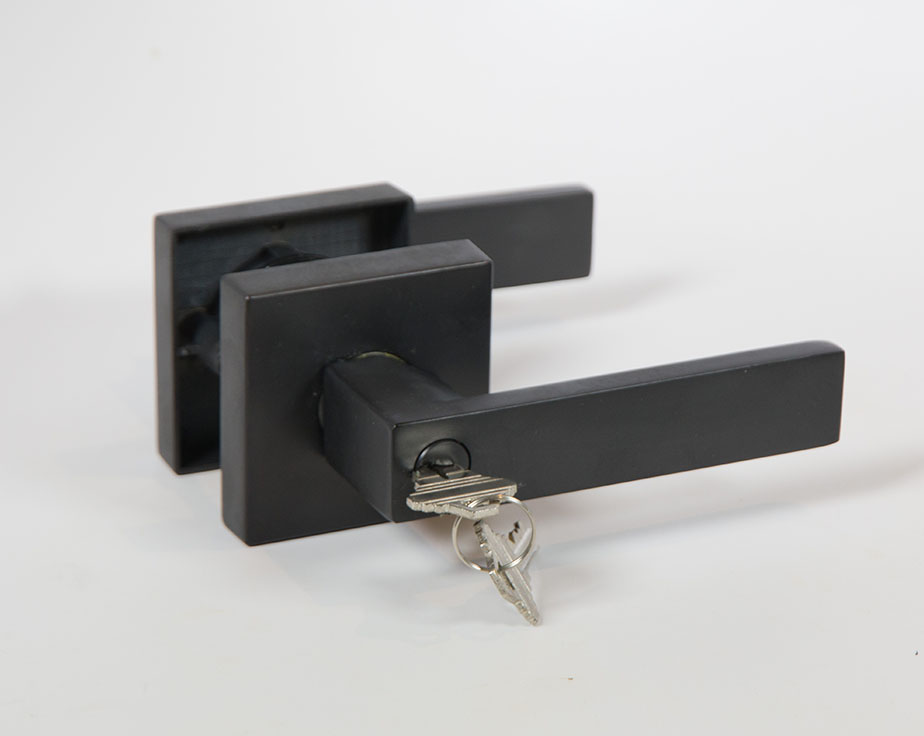

Keyed – for use on interior or exterior doors where strong privacy locking function is required (e.g. office). Can be opened outside only with a key.

Keyed Set available in 2 variations: Keyed Different and Keyed Alike

Keyed Different – locks with Different Keys. Each lock has its own unique key and can not be open by the others keys from the same locks.

Keyed Alike – when all locks in a set can be opened with the same key. This option is beneficial when multiple locks are use by the same person so that only one key needs to be used.

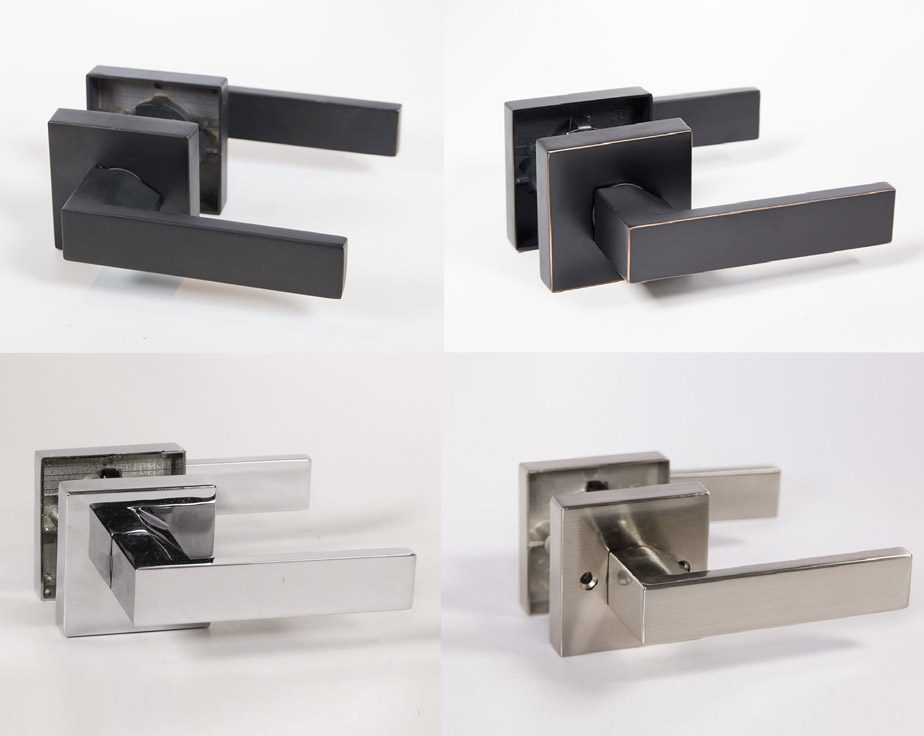

Available in following finishes: Satin Nickel, Oil Rubbed Bronze, Black Matte, Polished Chrome

Features:

  • Features an adjustable latch to fit all standard door preparations.
  • Solid Zinc Construction
  • Handing is Easily Reversed

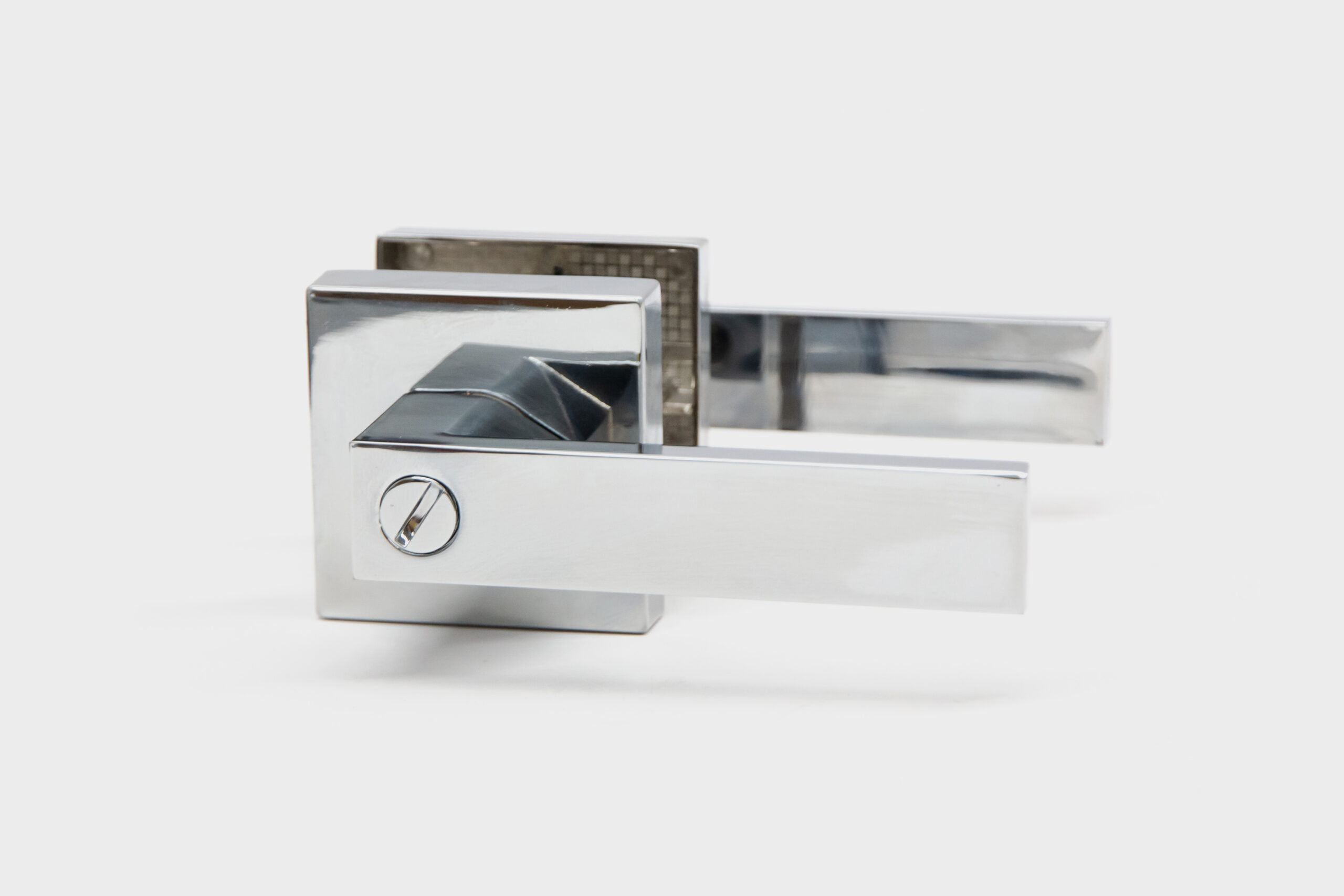

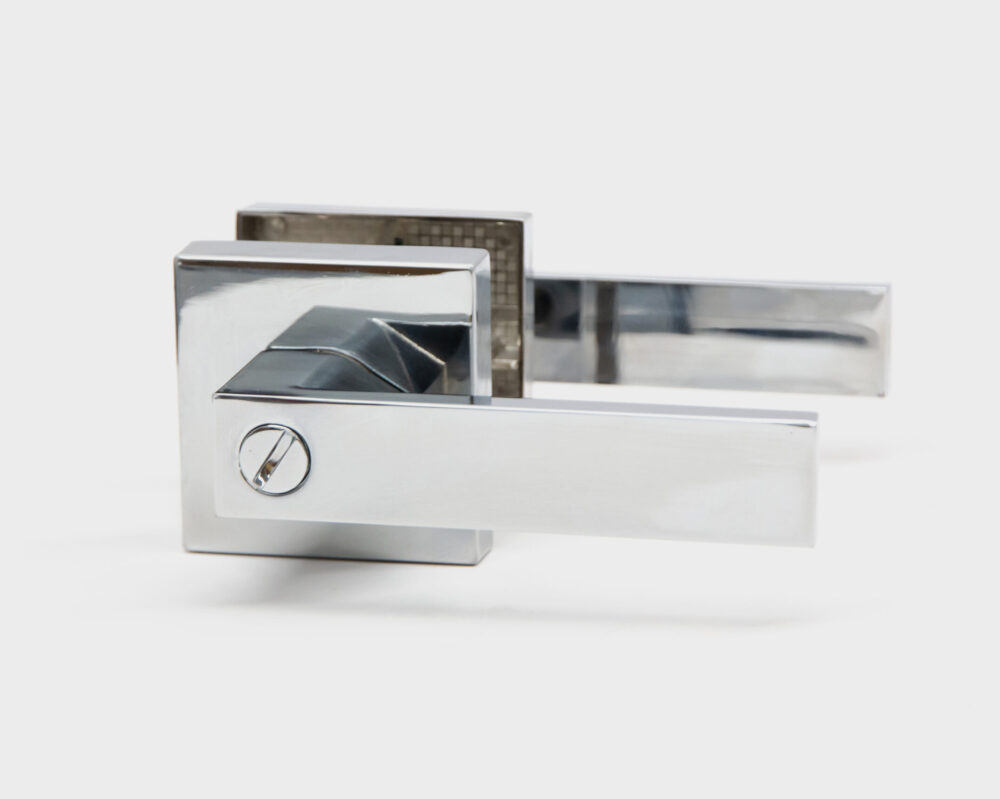

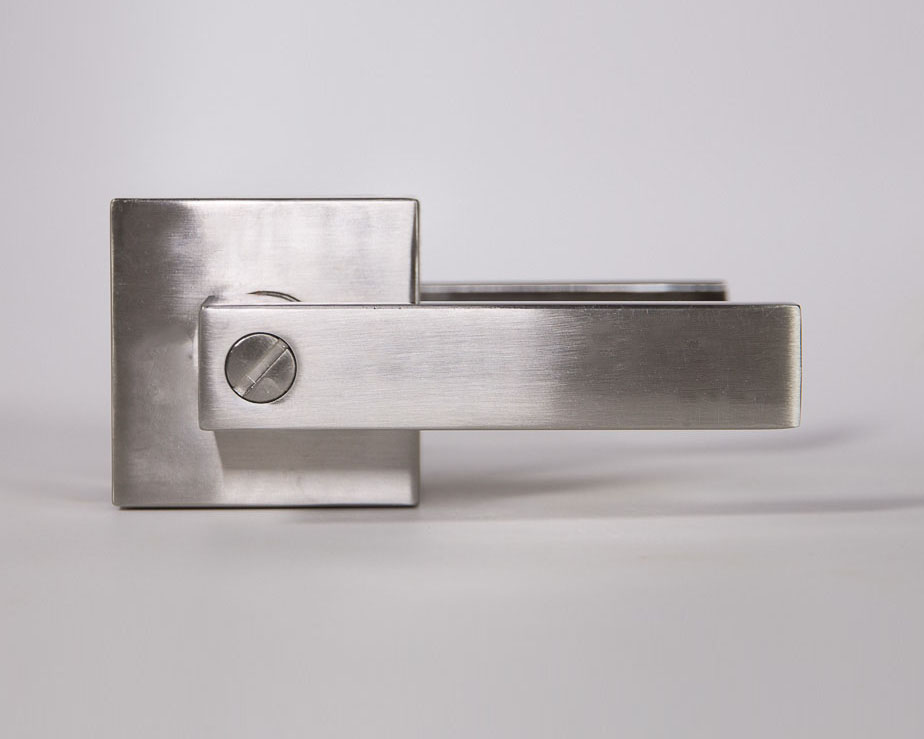

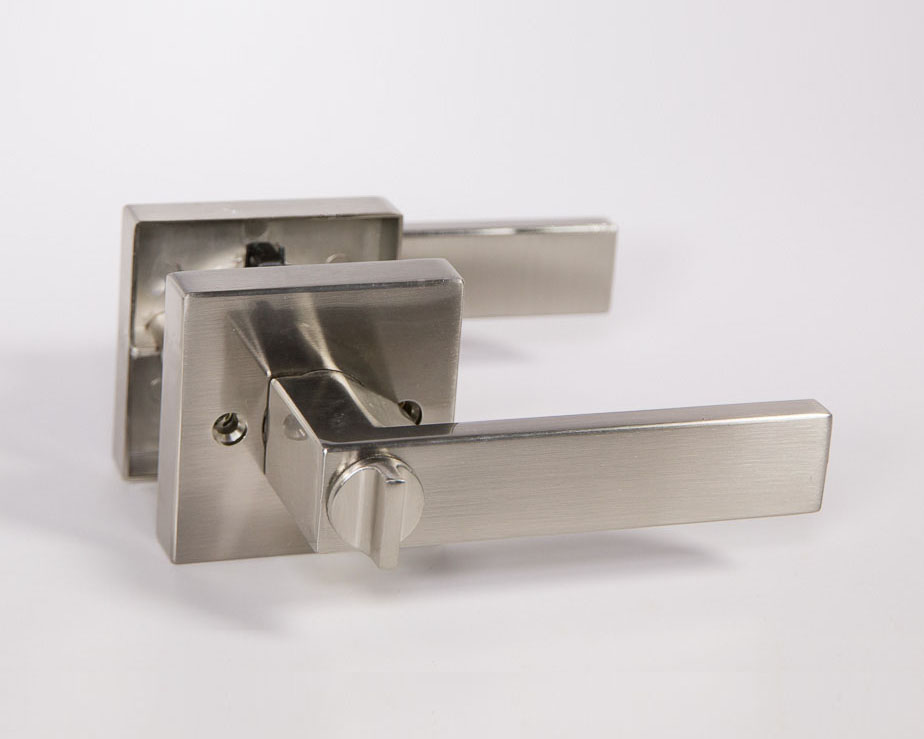

  • Turn Button or Push Button Lock for privacy function (Satin Nickel, Black, Oil-Rubbed bronze)

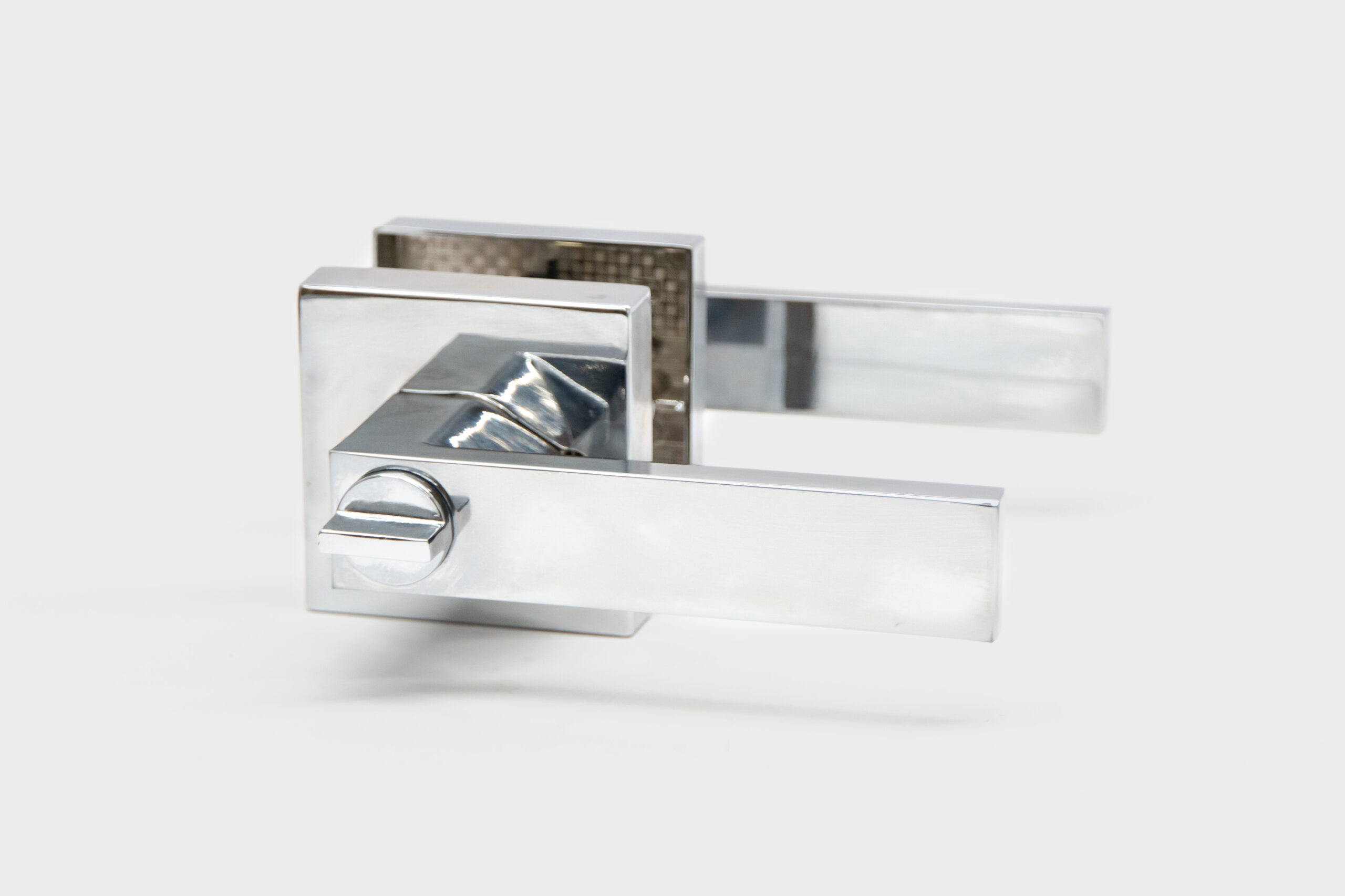

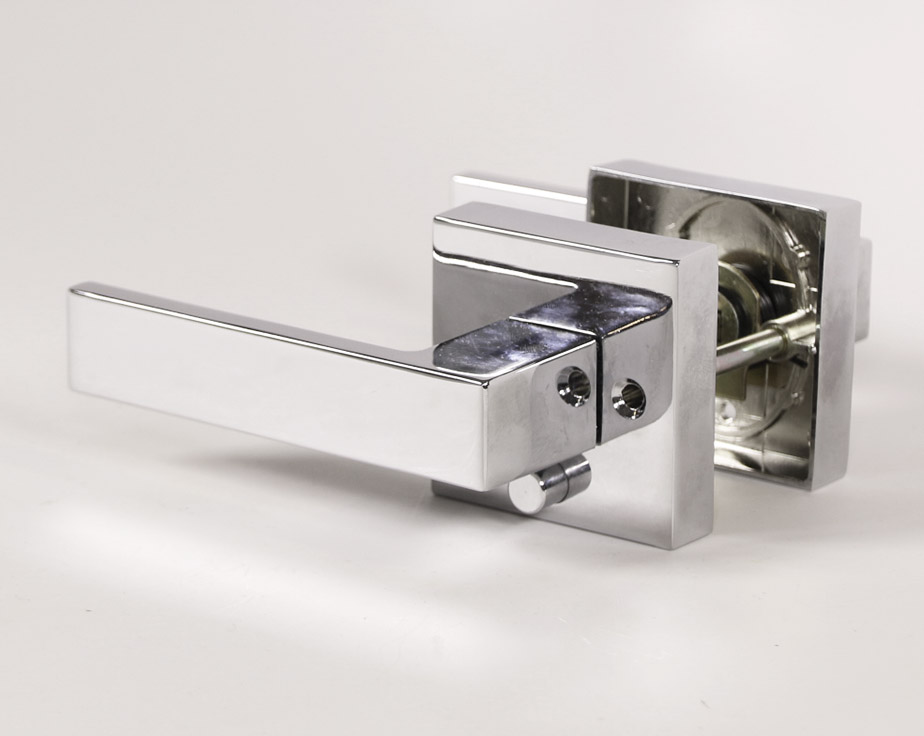

  • Push Button Lock for privacy function (Polished Chrome)
  • Strengthened Springs Ensure that the Lever Stays Level Over Time
  • Flush Head Mounting Screws
  • Includes Square Corner Strike

Specifications:

  • Fits standard door preparation
  • Door Thickness: 1 3/8″(35 mm) or 1 3/4″(44,5 mm)
  • Latch has square corner rectangular faceplate:  1″(25 mm) x 2 1/4″(57 mm)
  • Backset is adjustable: 2 3/8″(60 mm) and 2 3/4″(70 mm)
  • Bore Hole: 2 1/8″(54 mm)
  • Cross Bore: 1″(25 mm)
  • Handing: Reversible
  • Grip Length: 4 3/4″ (120 mm)
  • The square rosette size: 2 1/2″(65 mm) x 2 1/2″ (65 mm)
  • Weight: 1.87 lb (850 g)

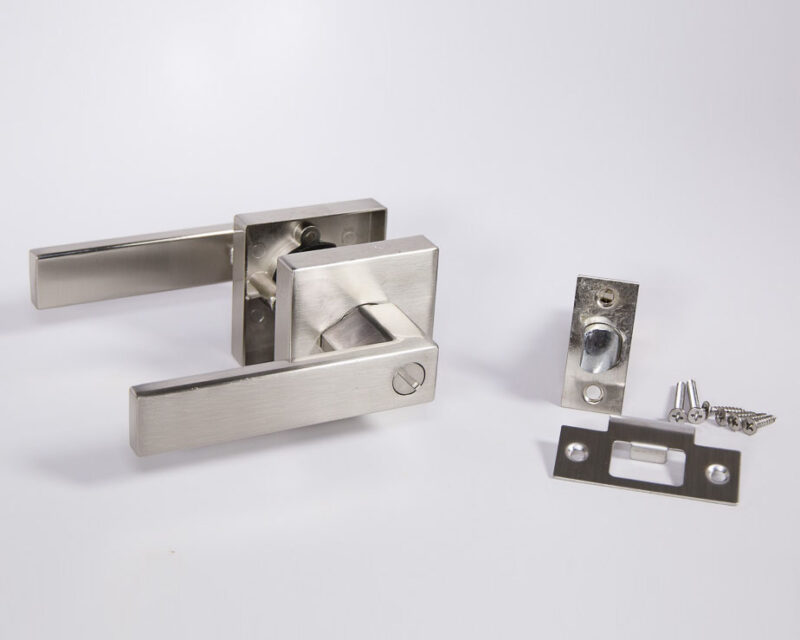

  • Includes all required hardware for complete installation

Modern Square PDF

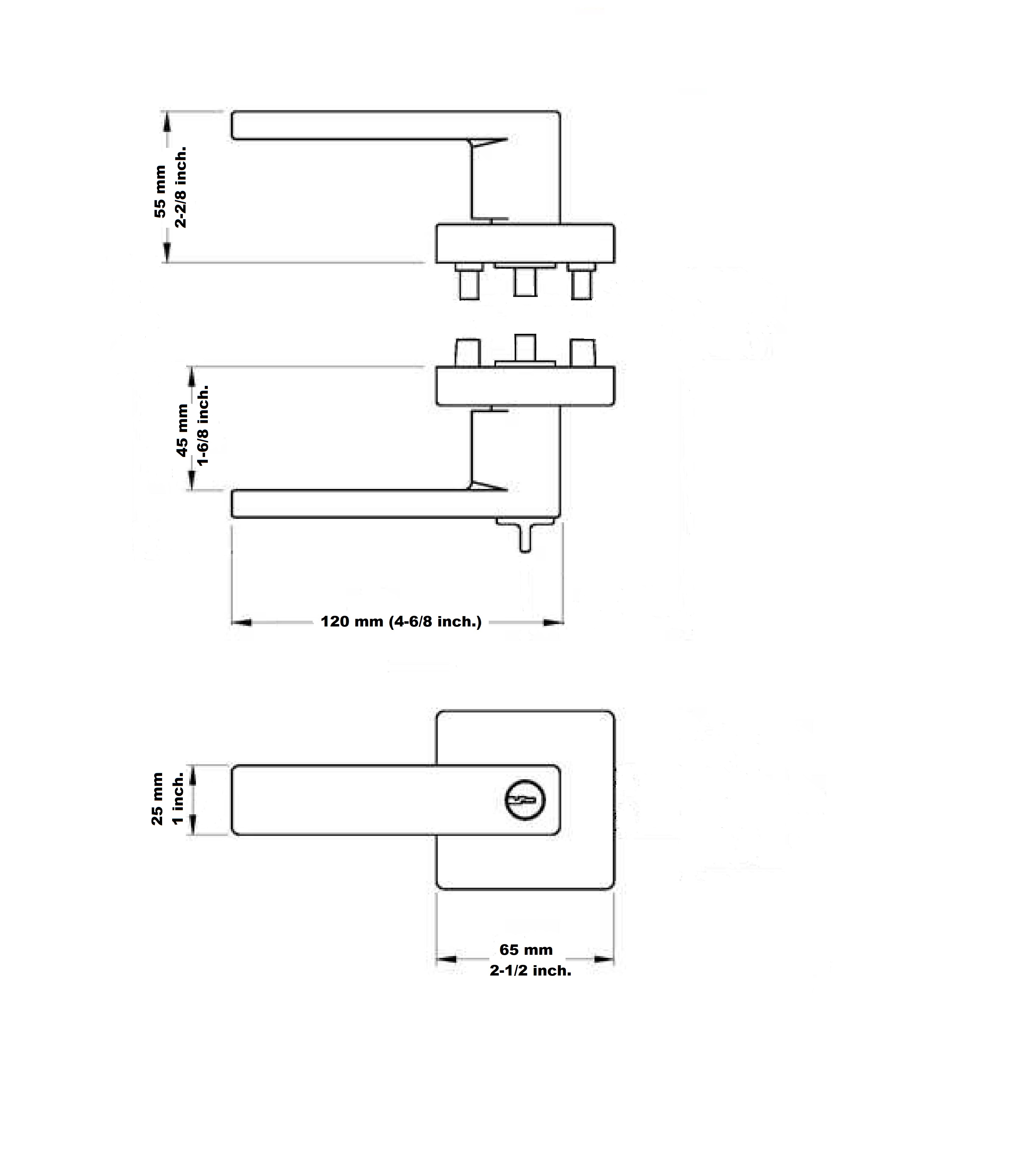

Modern SQ Img




Reviews (3)

3 reviews for Lisbon Door Handle Lever Set with Square Rosette


  1. 5 out of 5

    :

    Have bought two handsets so far. I am not a handy man but video installation was very helpful and it was simple to do. The handle itself is very sturdy and functions beautifully. I bought it for the modern style and finish (oil-rubbed bronze). I will be buying 8 more. Cheers! Andrew

  2. 5 out of 5

    :

    Mary is amazing . Bought 5 of these a few years ago. Came back for a few more last month. Door handles are amazing quality.! Great price ! Everyone admires them when they come over 🙂
    Thank you Mary

  3. 5 out of 5

    :

    The best deal around. I’d recommend anyone using your web-site.
    Dionis.
