Holland Door Handle Lever Set with Square Rosette

$37.00 CAD$59.00 CAD

Clear

Description

Overview and Installation of handle – “Holland” style

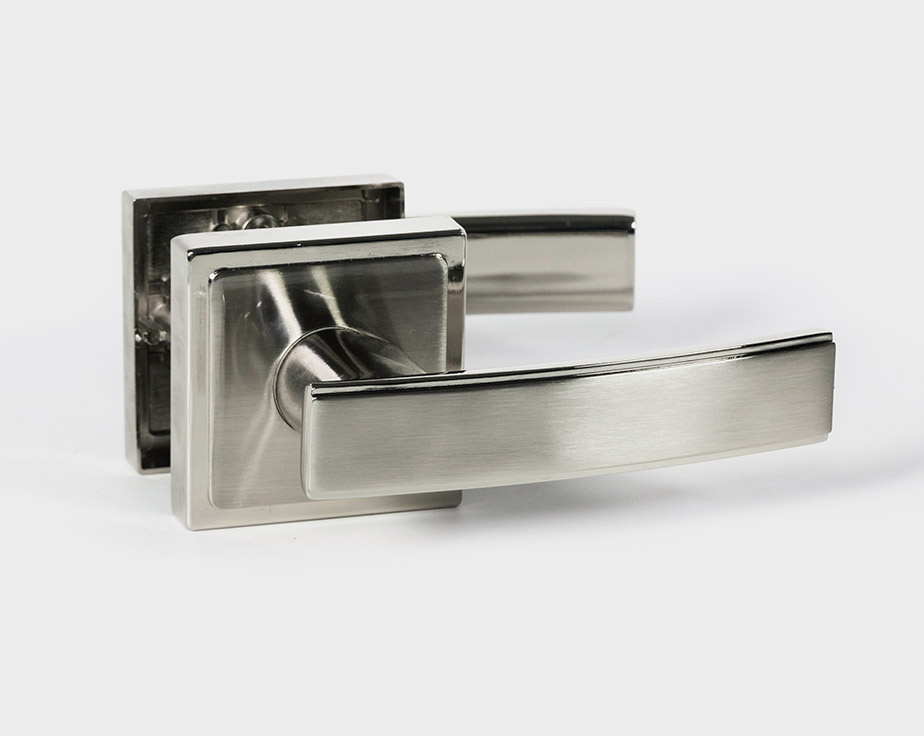

Passage – for use on interior doors where a locking feature is not required (e.g. bedrooms or hallways).

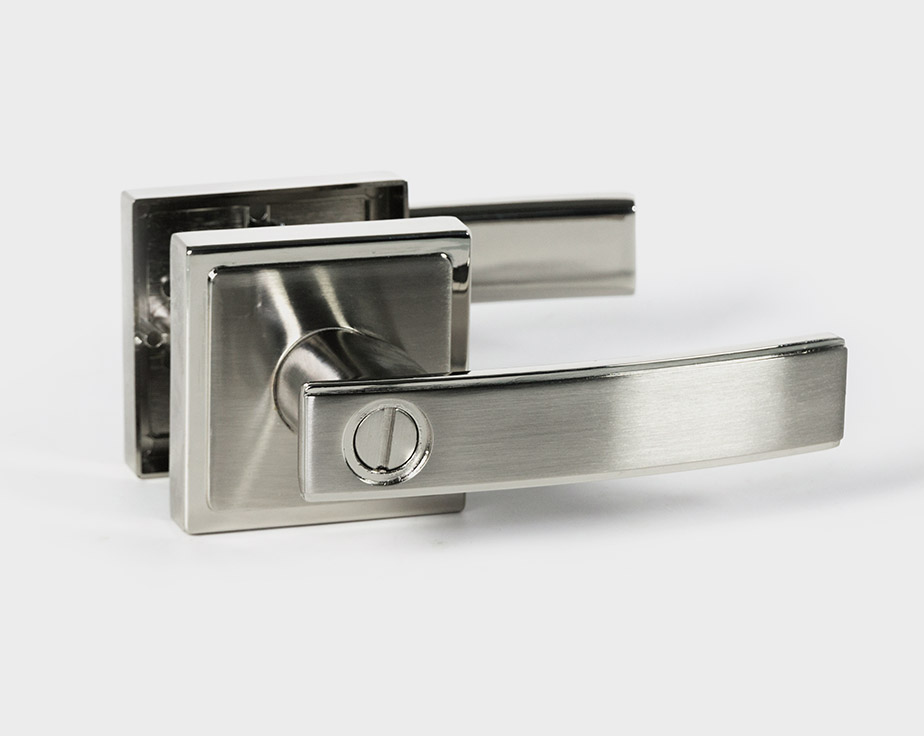

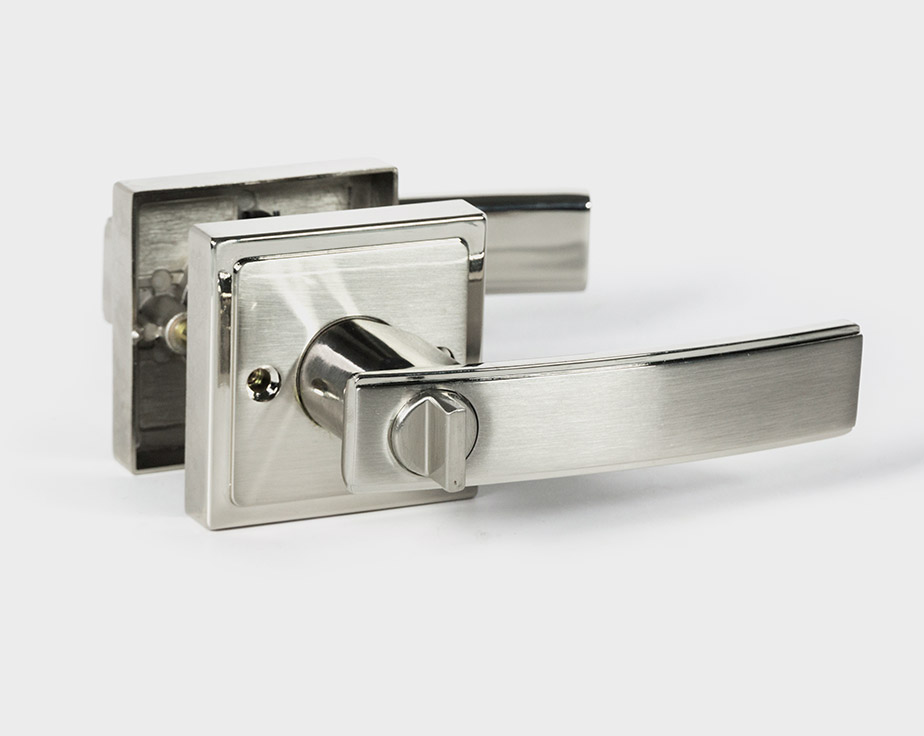

Privacy – for use on interior doors where a privacy locking function is required (e.g. bathrooms).

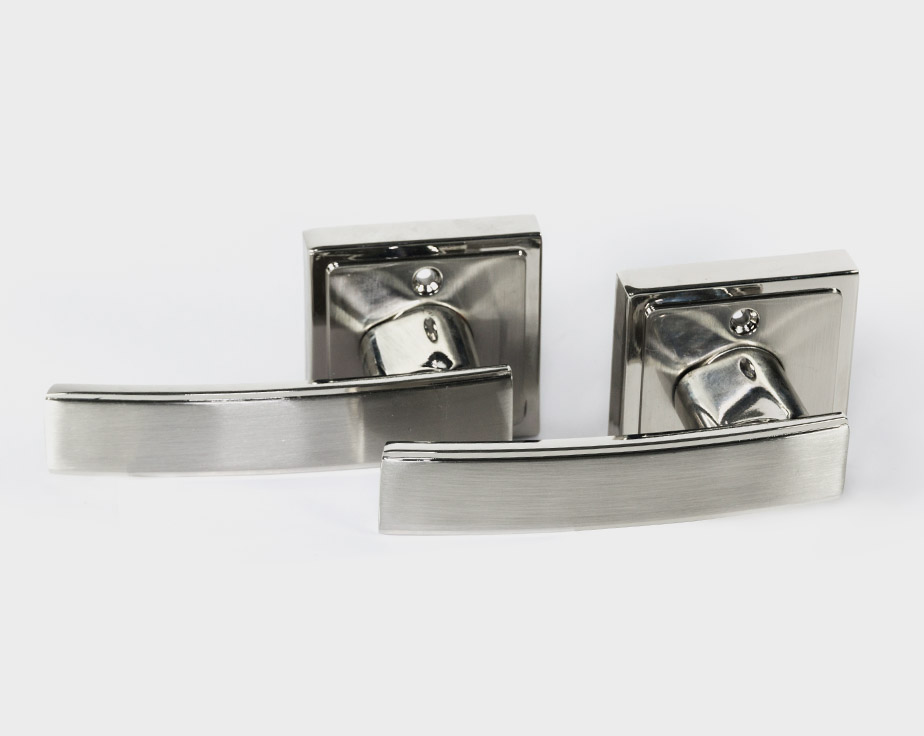

Dummy – for use on interior door where a pull/push function is required (e.g. closet). Comes as set of 2 handles.

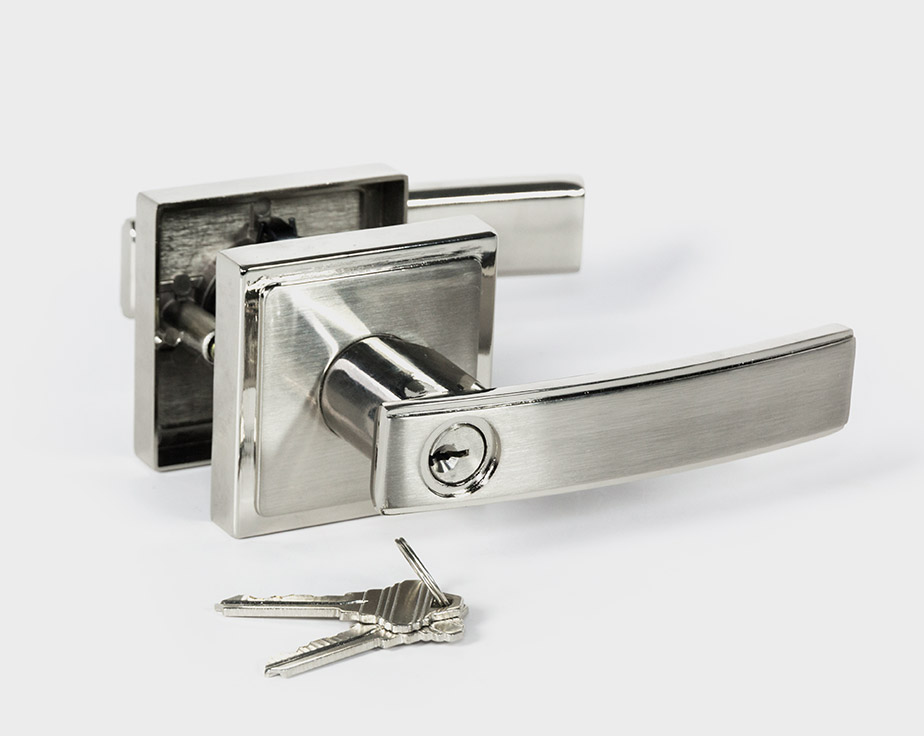

Keyed – for use on interior or exterior doors where strong privacy locking function is required (e.g. office). Can be opened outside only with a key.

Keyed Set available in 2 variations: Keyed Different and Keyed Alike

Keyed Different – locks with Different Keys. Each lock has its own unique key and can not be open by the others keys from the same locks.

Keyed Alike – when all locks in a set can be opened with the same key. This option is beneficial when multiple locks are use by the same person so that only one key needs to be used.

Available in following finishes: Satin Nickel

Features:

  • Features an adjustable latch to fit all standard door preparations.
  • Solid Zinc Construction
  • Handing is easily reversed
  • Turn Button for privacy function
  • Strengthened Springs Ensure that the Lever Stays Level Over Time
  • Flush Head Mounting Screws
  • Includes Square Corner Strike
  • Installation guide is included

Specifications:

  • Fits standard door preparation
  • Door Thickness: 1 3/8″(35 mm) or 1 3/4″(44,5 mm)
  • Latch has square corner rectangular faceplate:  1″(25 mm) x 2 1/4″(57 mm)
  • Backset is adjustable: 2 3/8″(60 mm) and 2 3/4″(70 mm)
  • Bore Hole: 2 1/8″(54 mm)
  • Cross Bore: 1″(25 mm)
  • Handing: Non-handed
  • Grip Length: 4.95″ (125 mm)
  • Square rosette size: 2 1/2″(65 mm) x 2 1/2″(65 mm)
  • Projection: 2 1/4″ (55 mm)
  • Weight: 1.8 lb (820 g)
  • Includes all required hardware for complete installation

Holland PDF

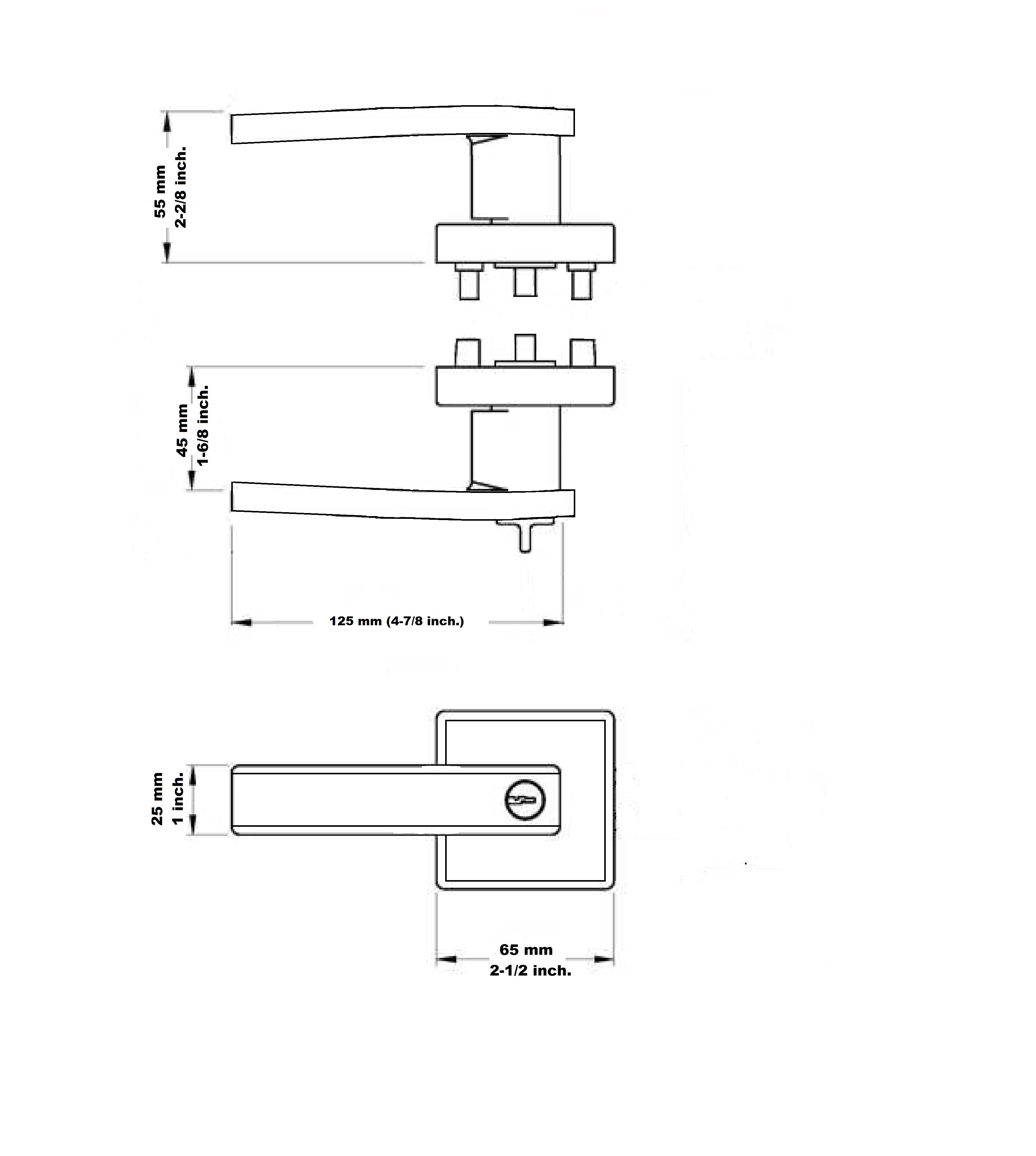

Holland img
