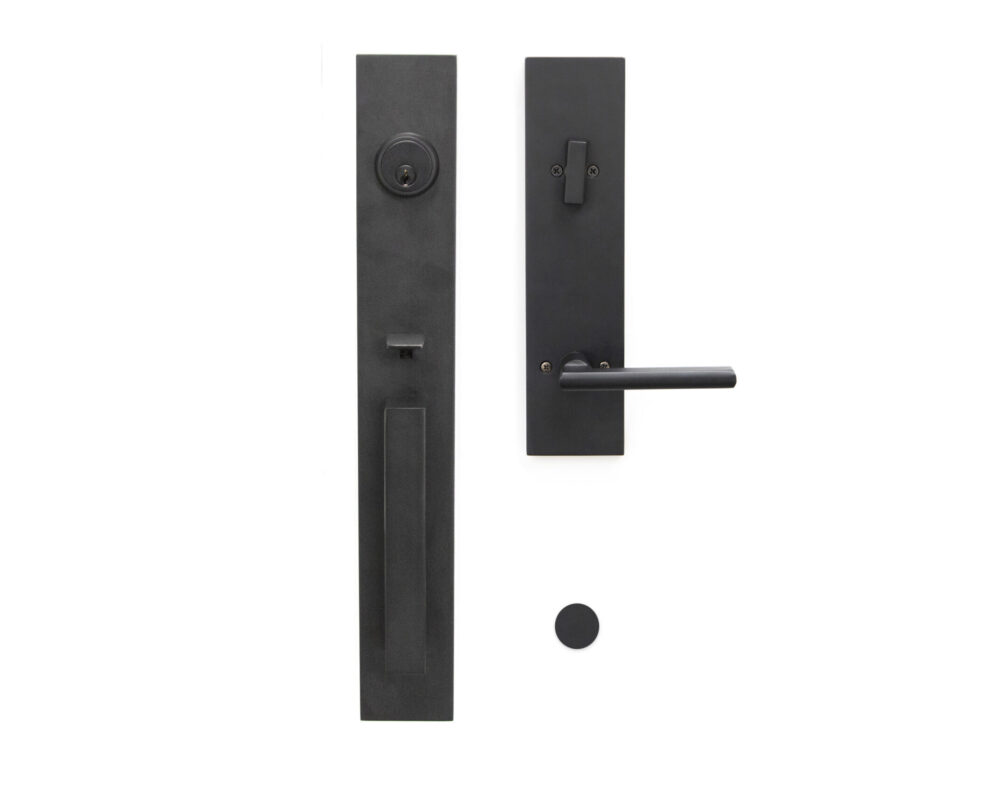

Lakeshore Single Cylinder Full Plate Handleset with Interior Lever on Long Backplate

$270.00 CAD

Clear

Description

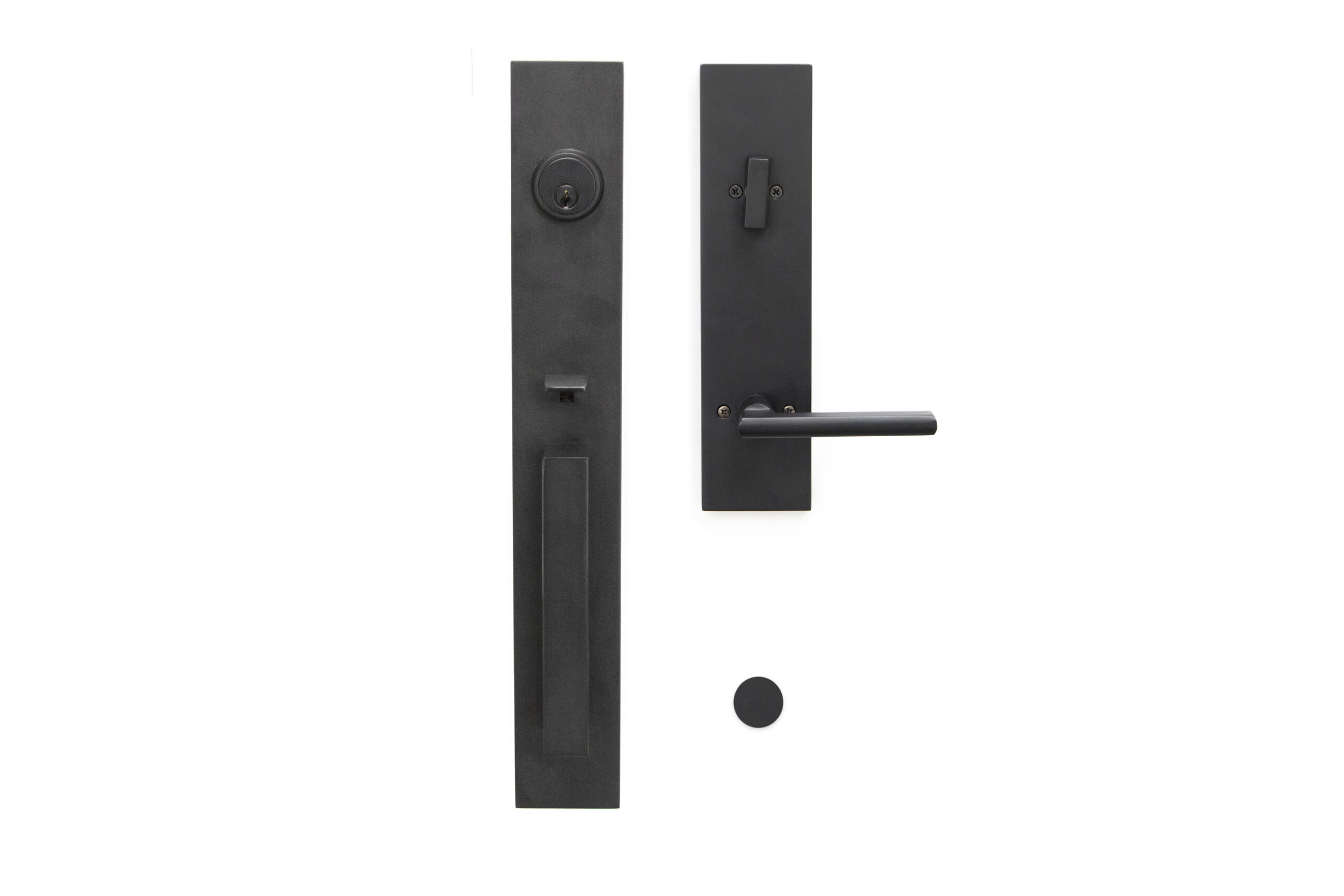

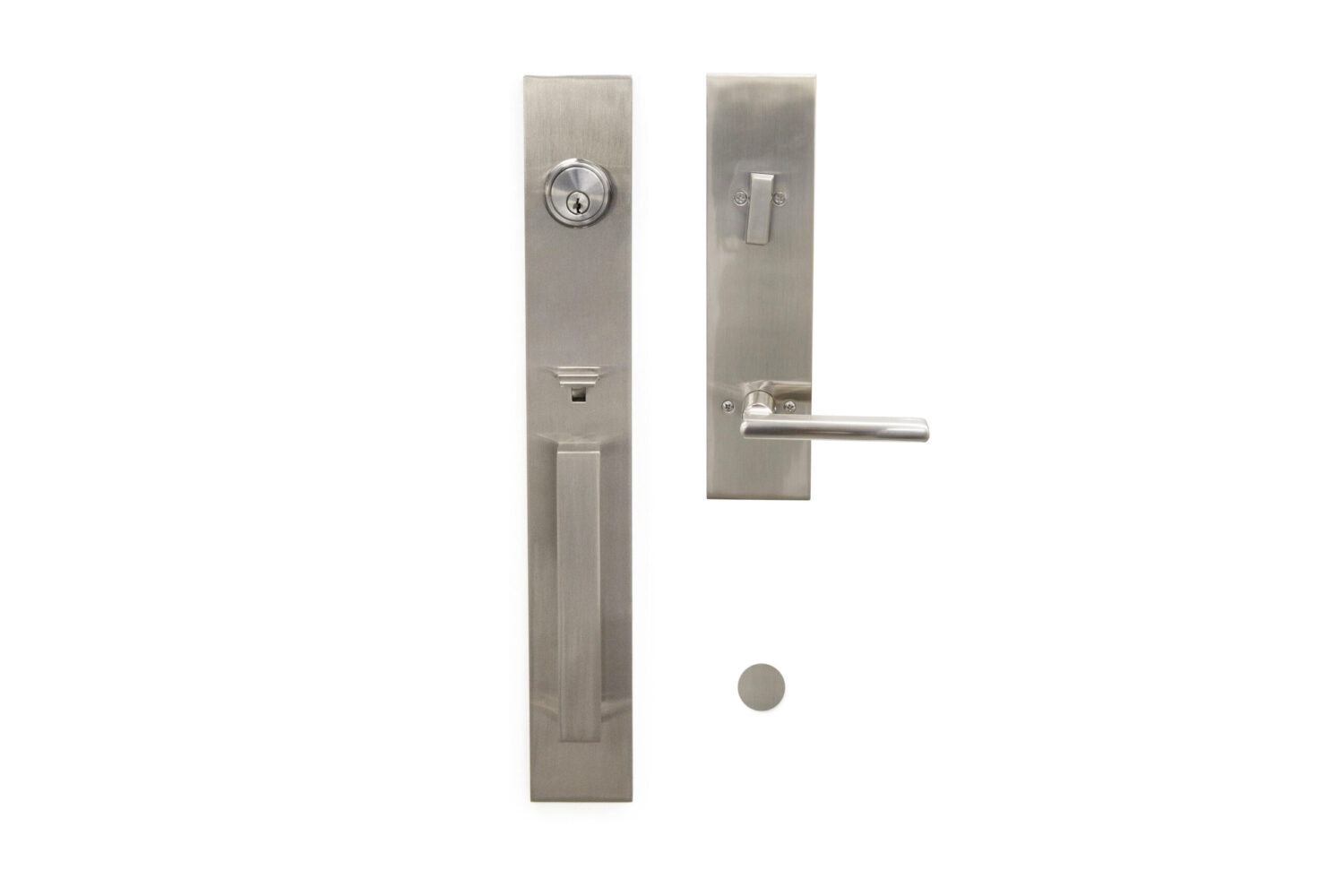

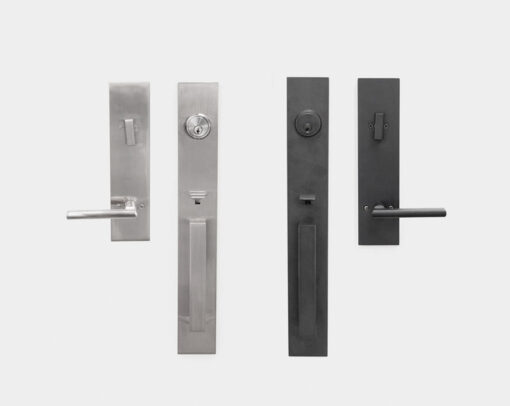

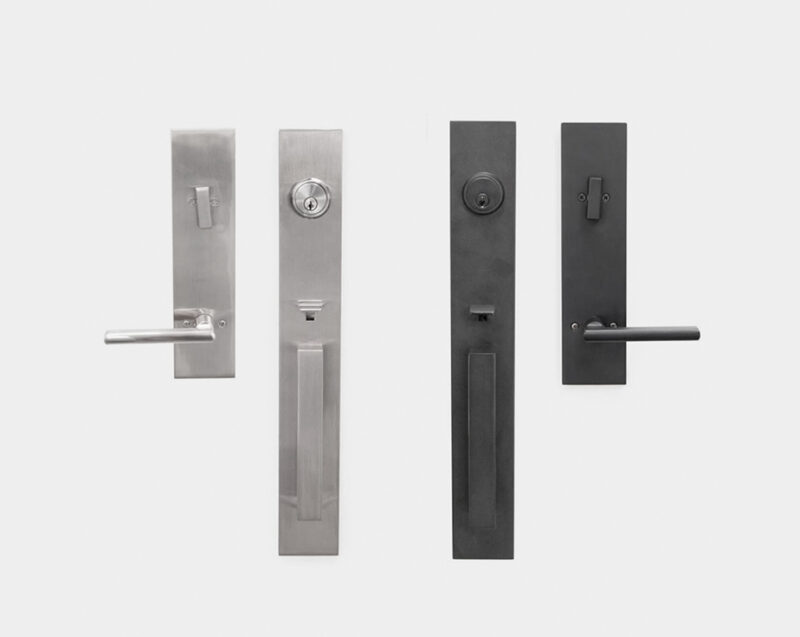

Available in following finishes: Satin Nickel, Black Matte

Features:

  • Fits standard door preparation
  • Door Thickness: 1 3/8″(35 mm) or 1 3/4″(44,5 mm)
  • Works for both 2 3/8″ (60mm) and 2 3/4″ (70mm) backsets
  • Bore Hole: 2 1/8″(54 mm)
  • Cross Bore: 1″(25 mm)
  • Projection: 3″ (76 mm)
  • Latch has square corner rectangular faceplate:  1″(25 mm) x 2 1/4″(57 mm)
  • Distance from upper bore hole down to thumbturn: 5 1/2″

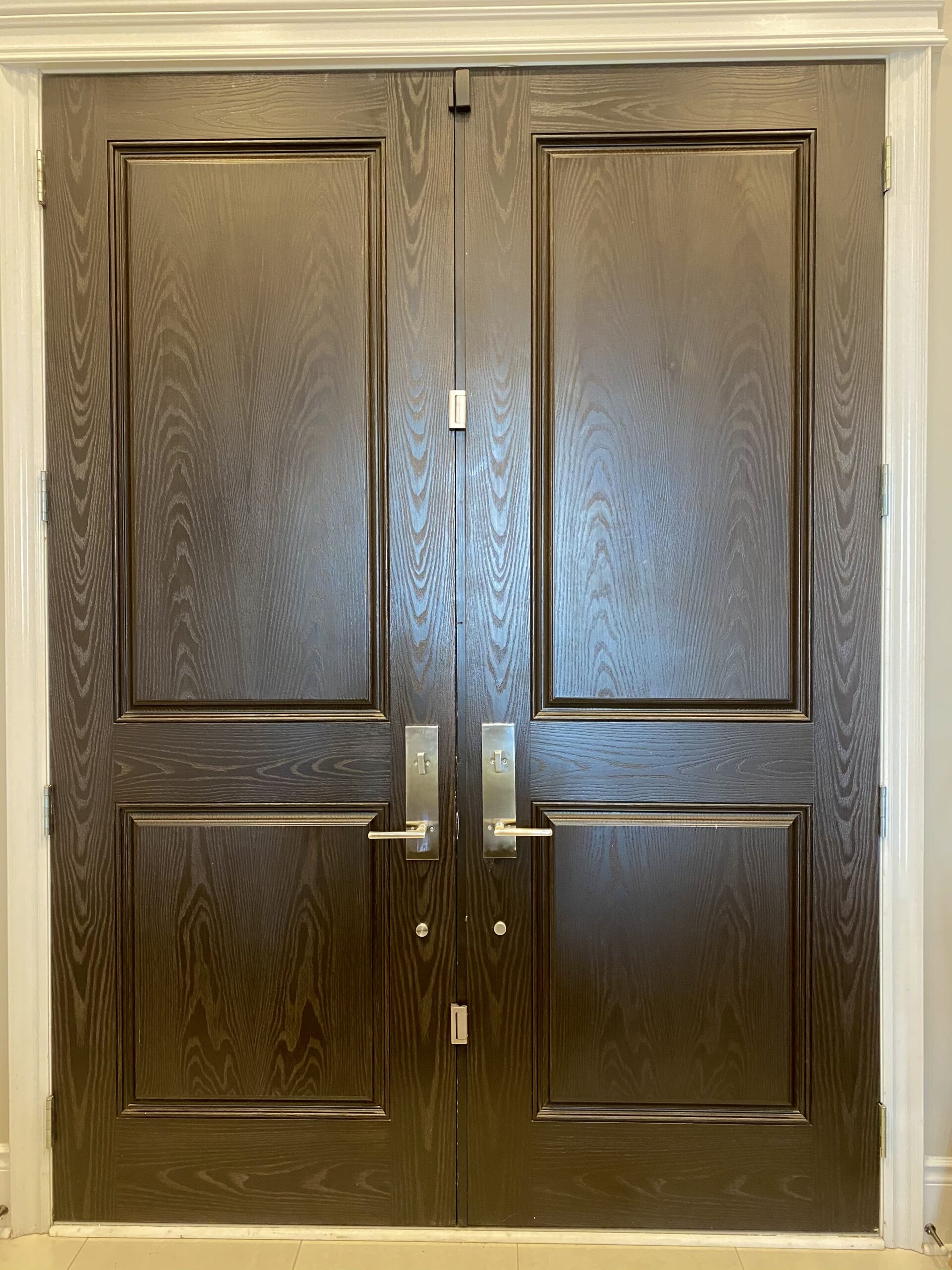

  • Interior Handle Style: Lever on long backplate
  • Reversible Handing: fits both right handed and left handed doors
  • Locking mechanism: Tubular Lock
  • Lock Type: Single Cylinder
  • Material: Zinc Alloy
  • 2 keys are included
  • Security Grade: Grade 2
  • Includes all required hardware for complete installation
  • Easy installation with only a Phillips screwdriver

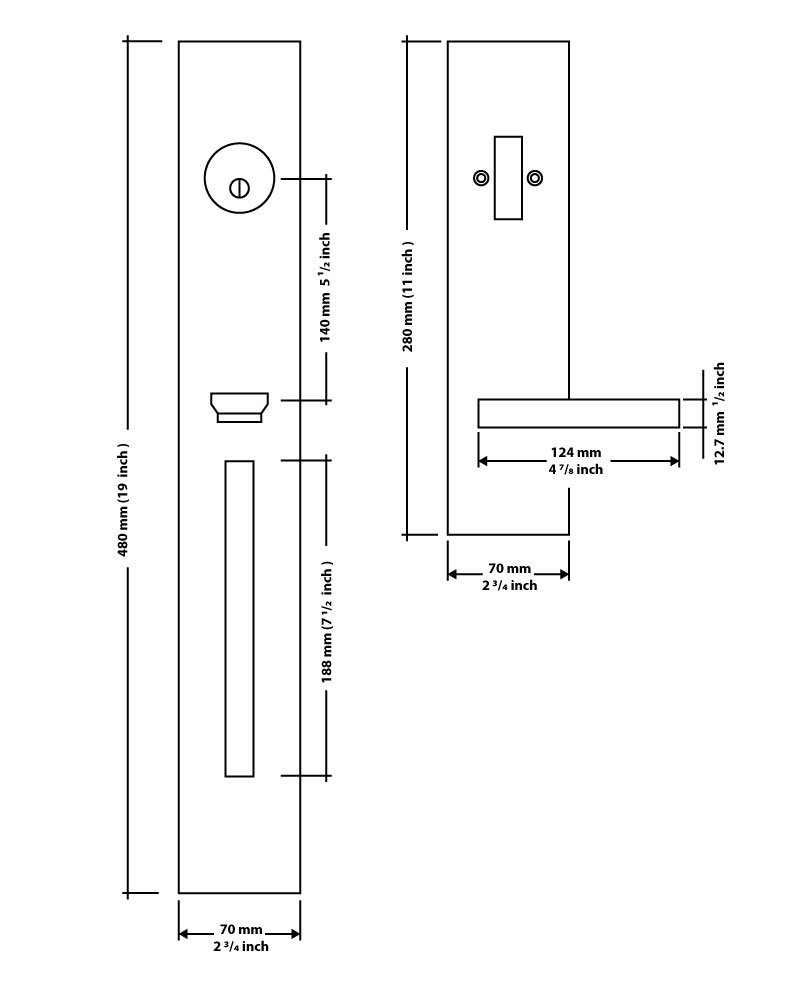

Dimensions and Measurements:

  • Overall Exterior Plate Height: 18 7/8″ (480 mm)
  • Overall Interior Plate Height: 11″ (280 mm)
  • Plate (Interior/Exterior) Width: 2 3/4″ (70 mm)
  • Interior Lever Length: 4 3/4″ (120 mm)

Available in the following functions: Single Door Handleset and Double Doors Handleset.

Single Door Handleset is locked/unlocked with a key from the exterior and locked/unlocked from the inside of the home with a thumbturn when there is only one entrance door in the house.

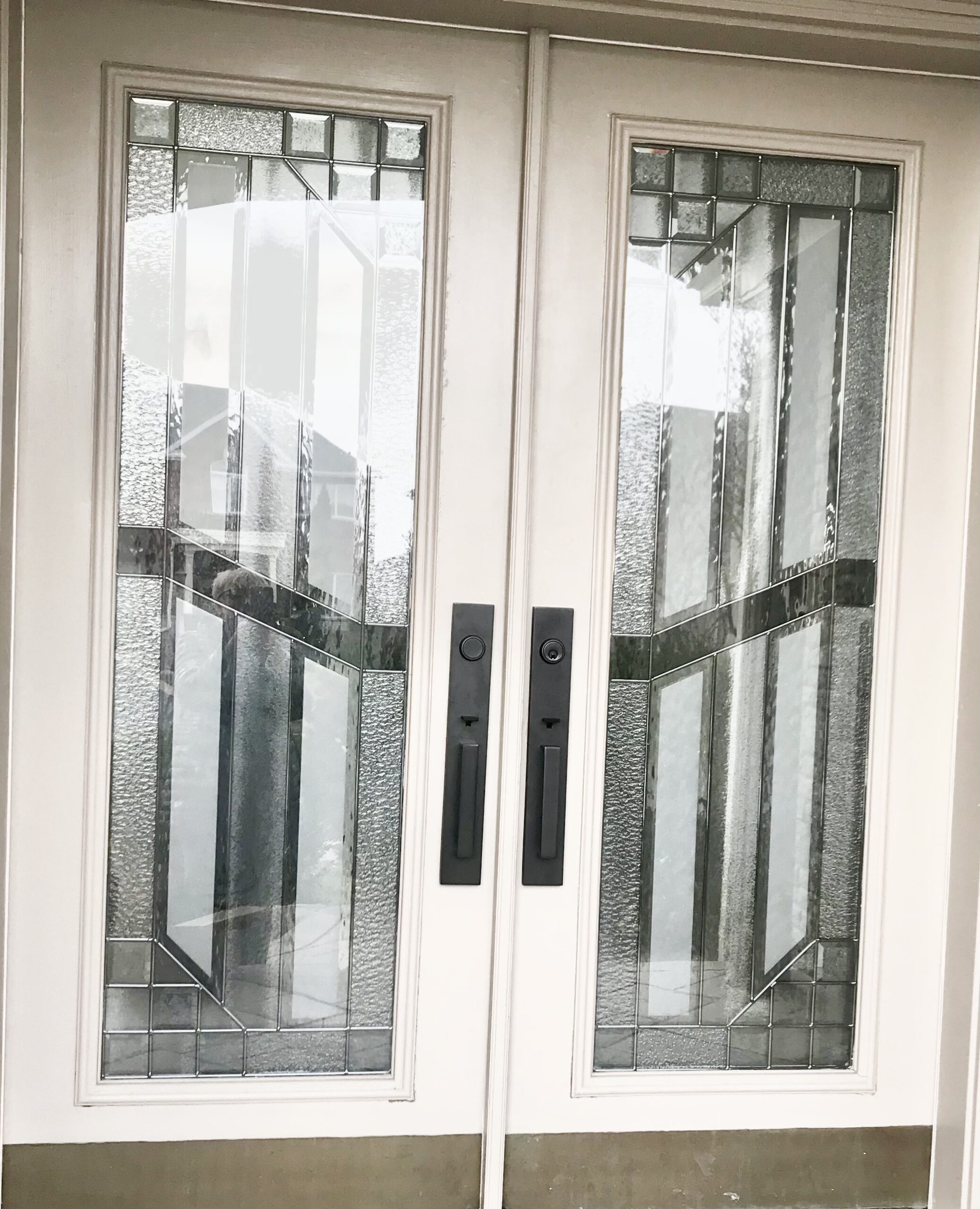

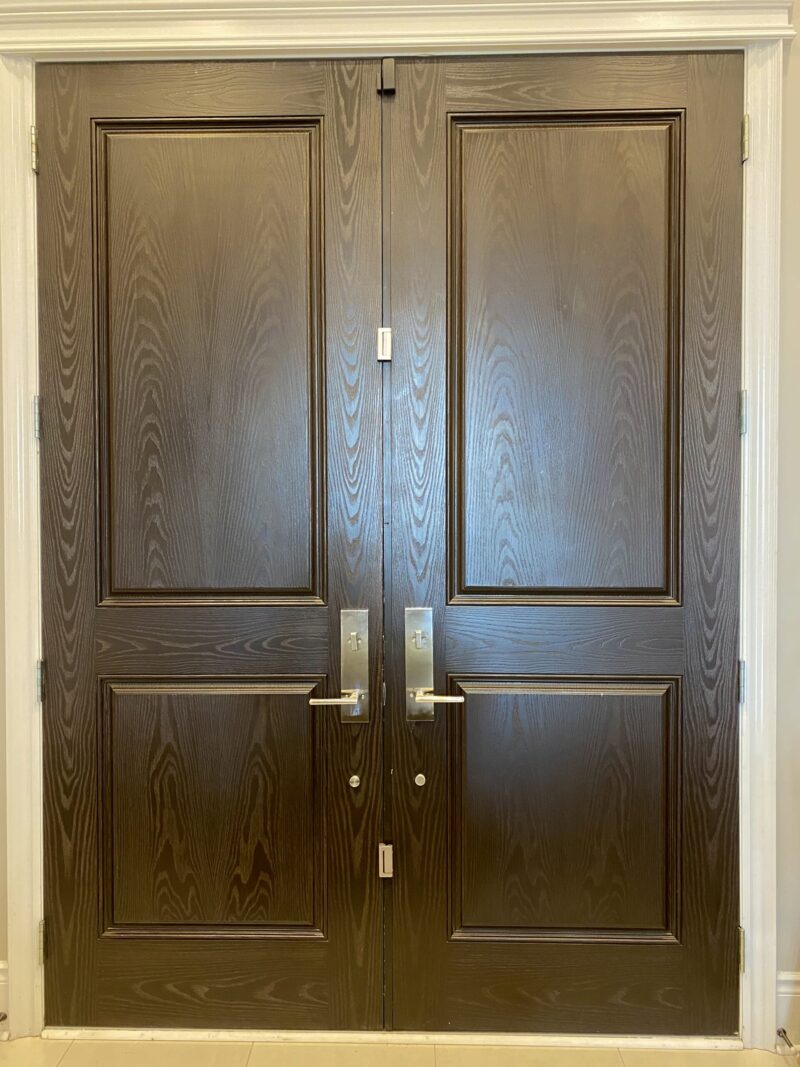

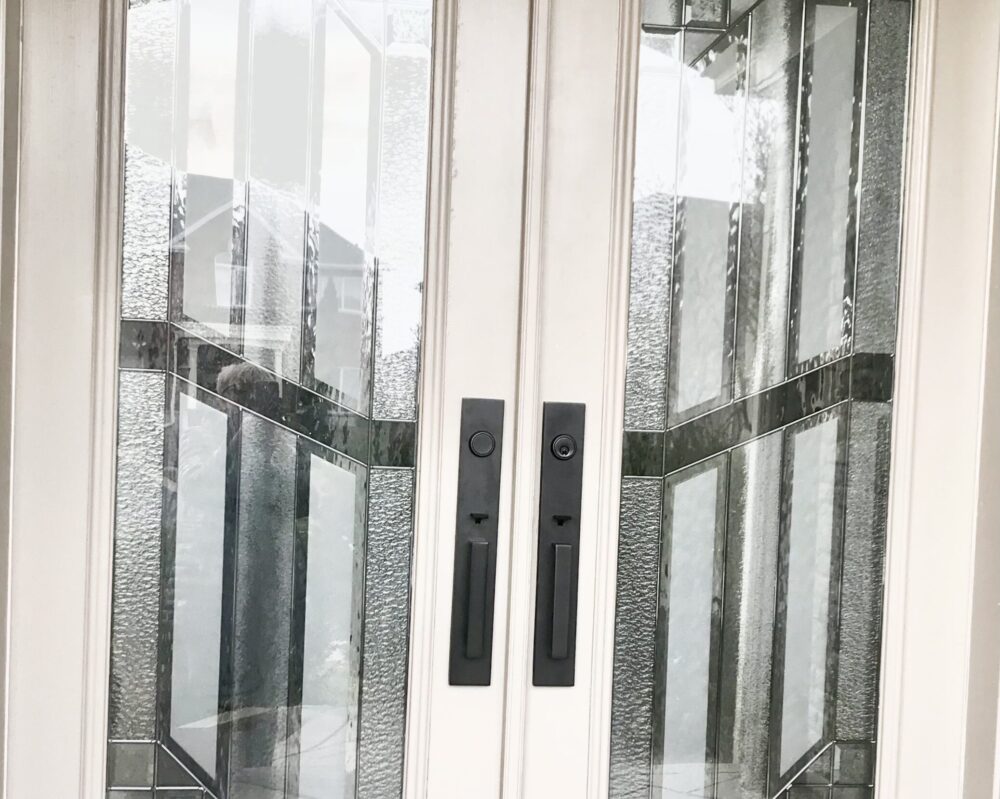

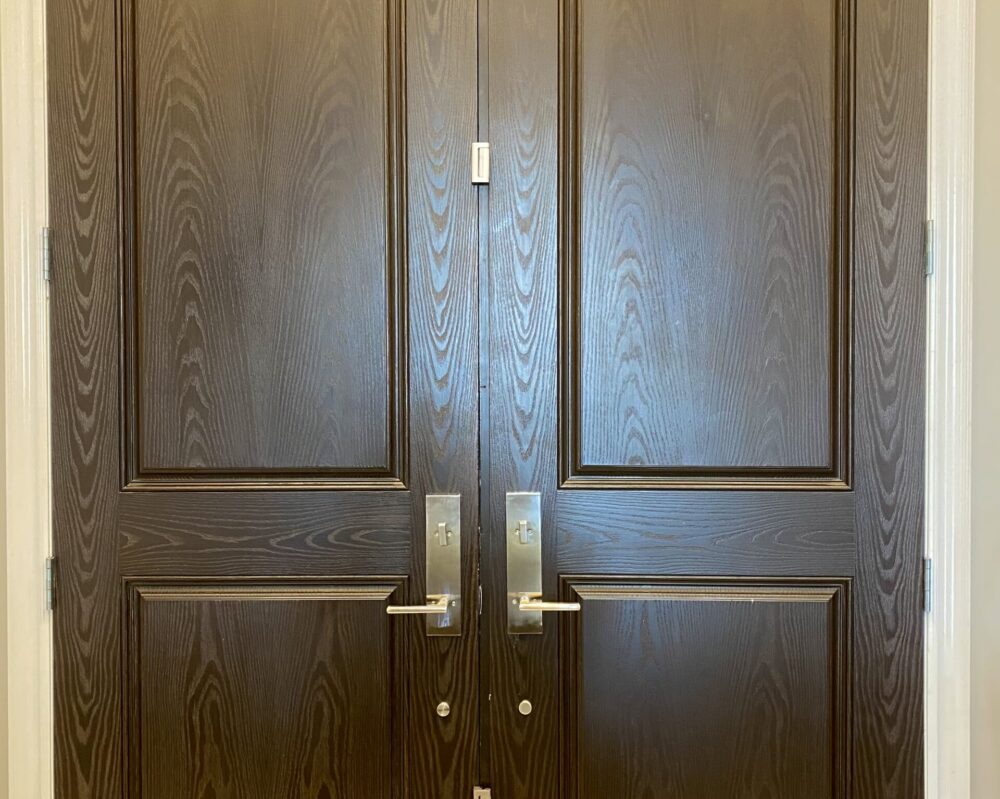

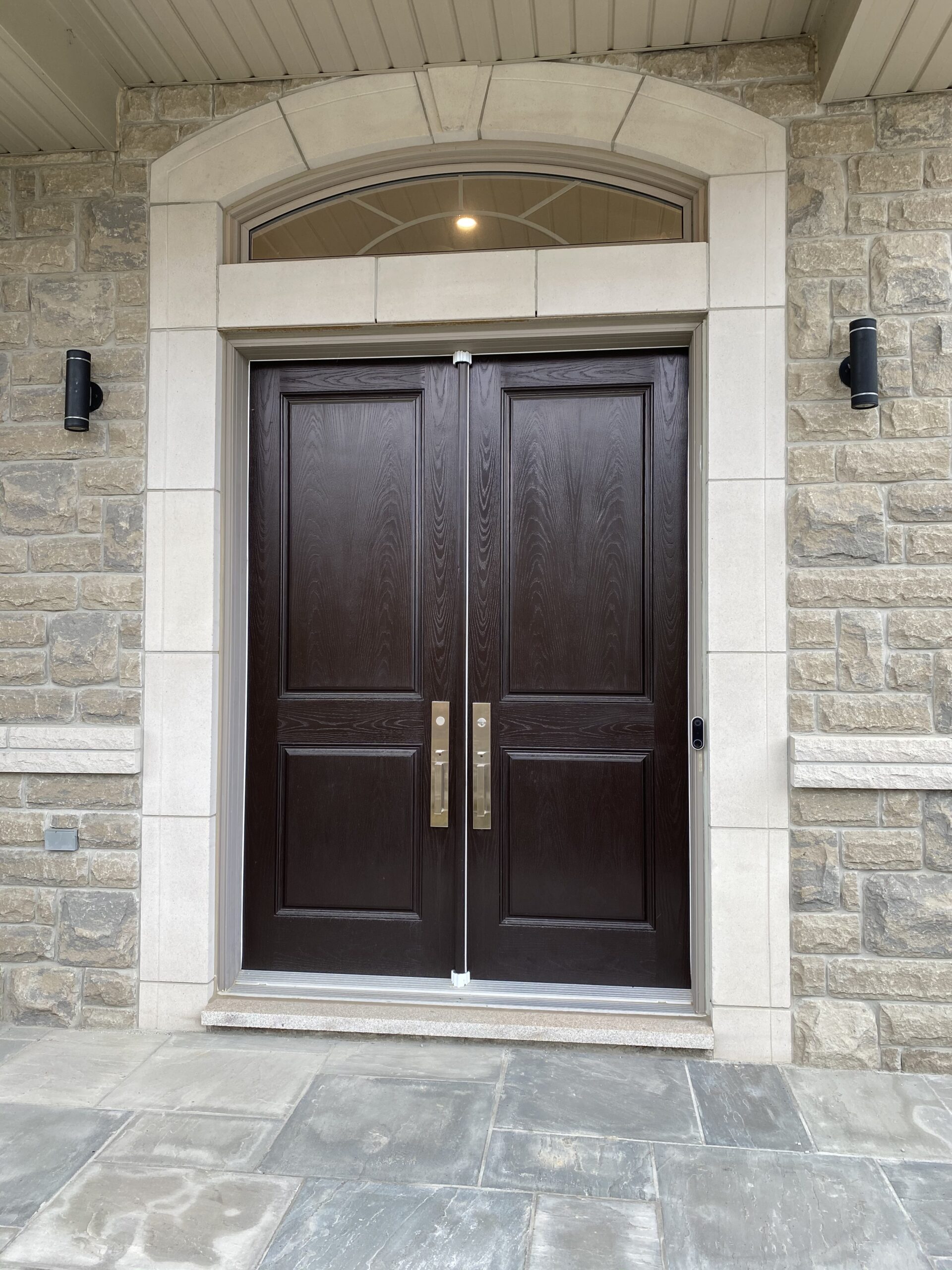

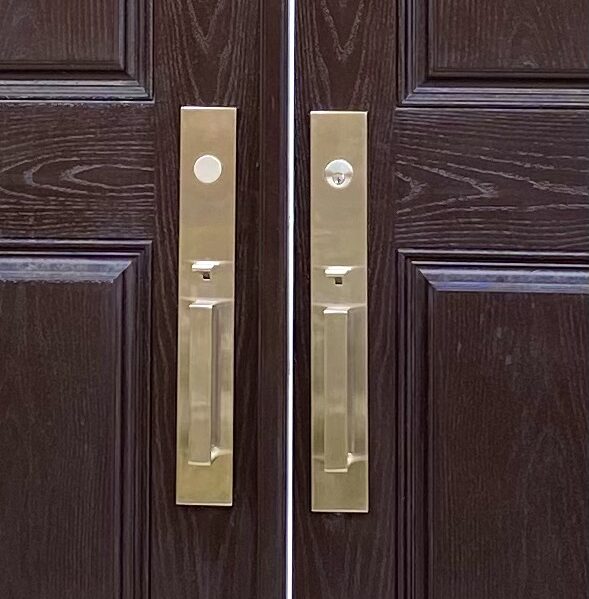

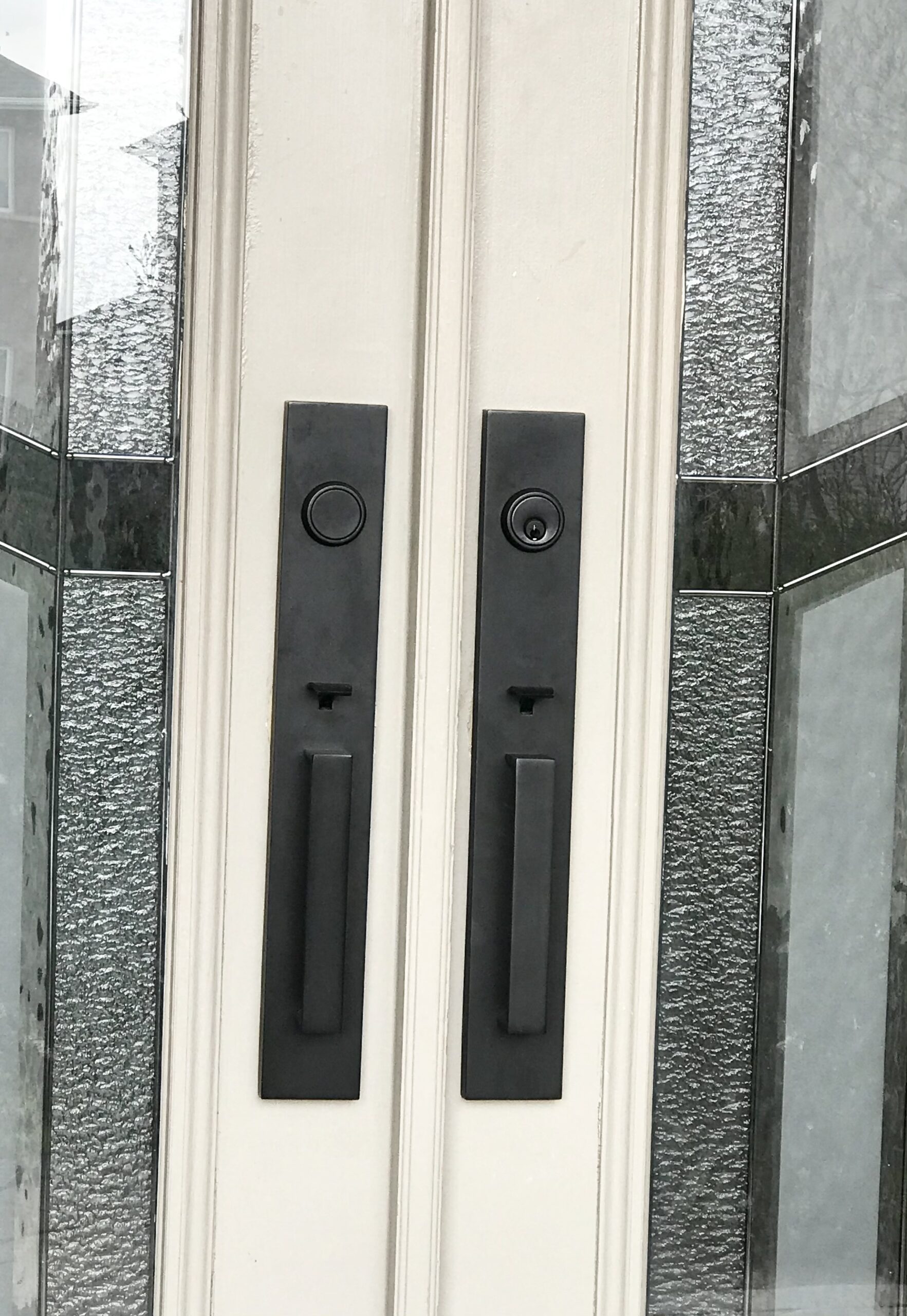

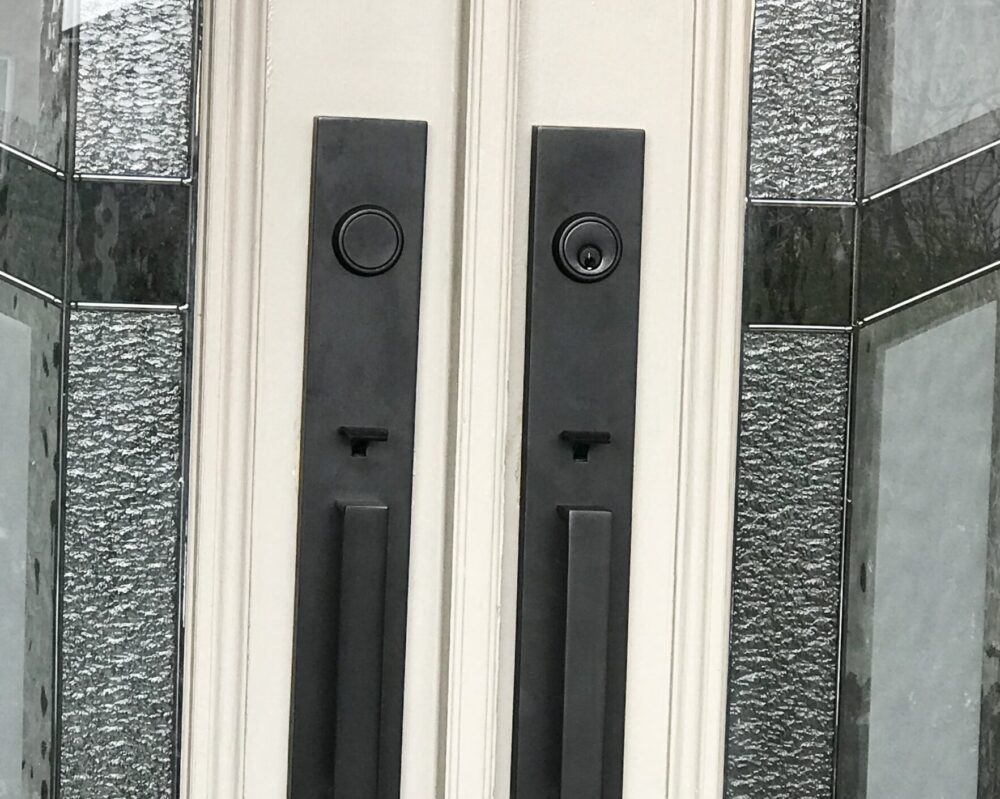

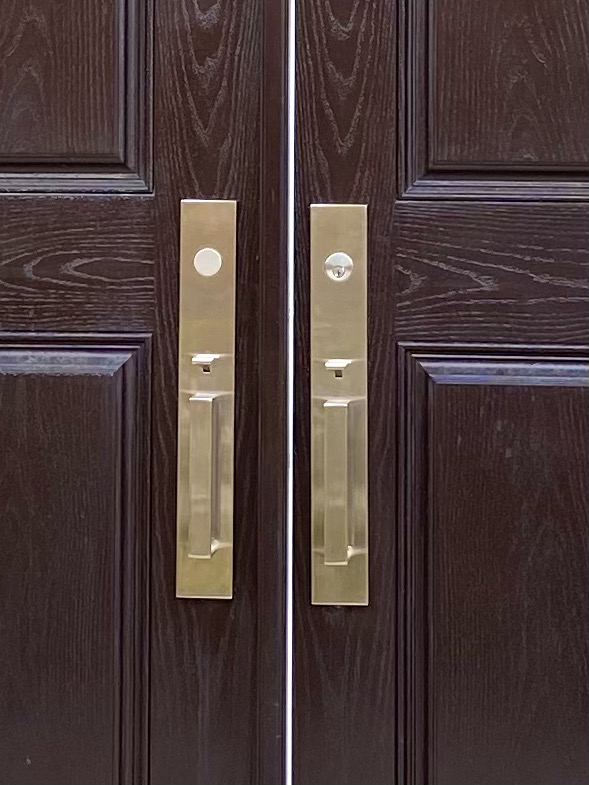

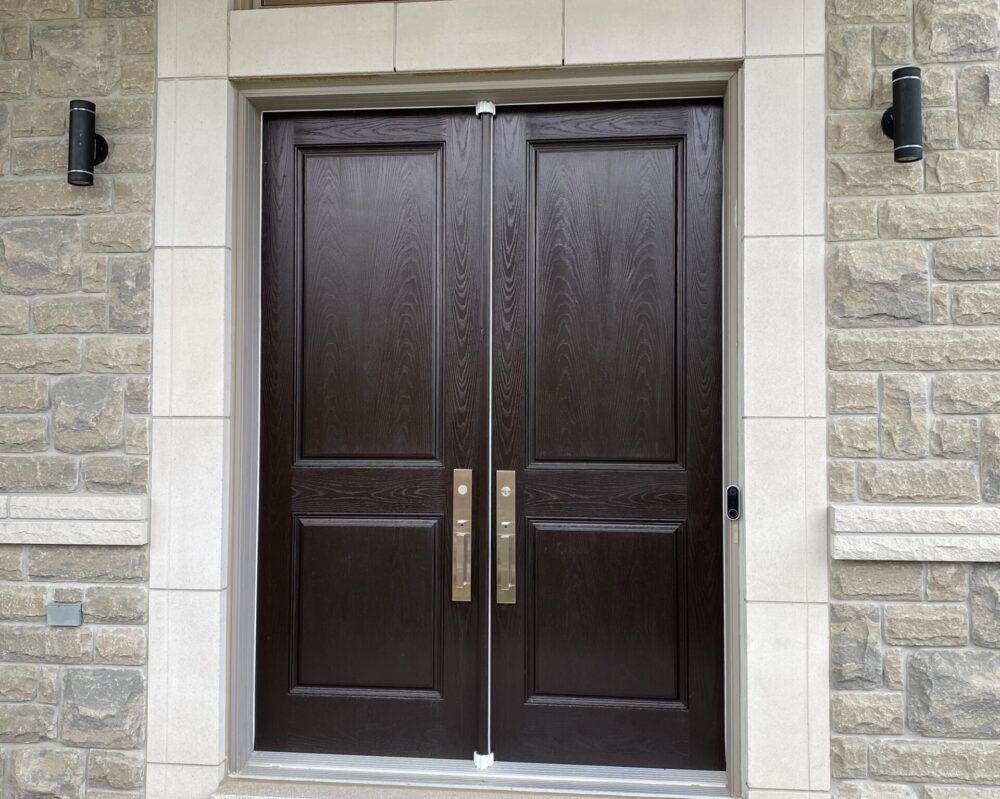

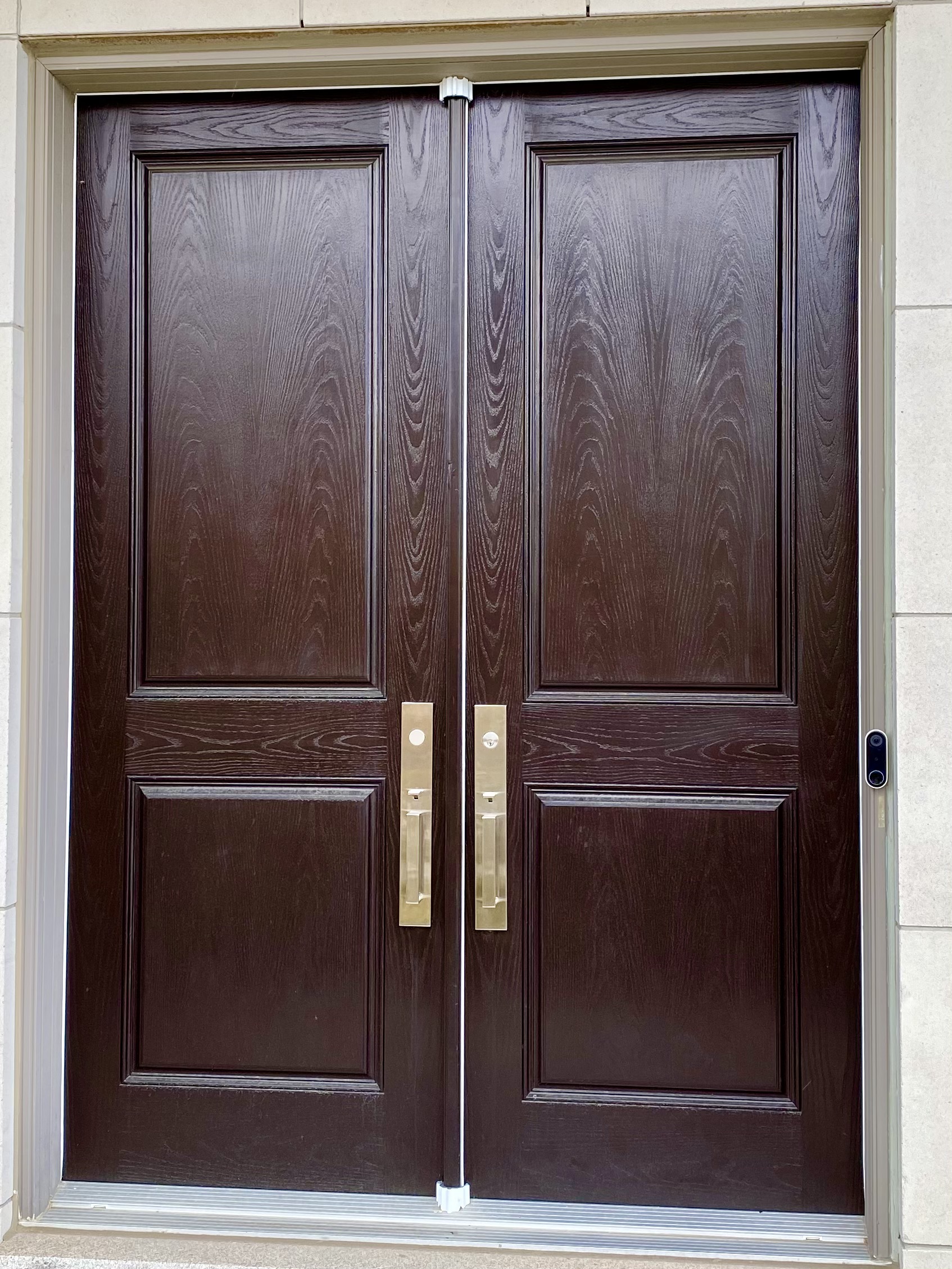

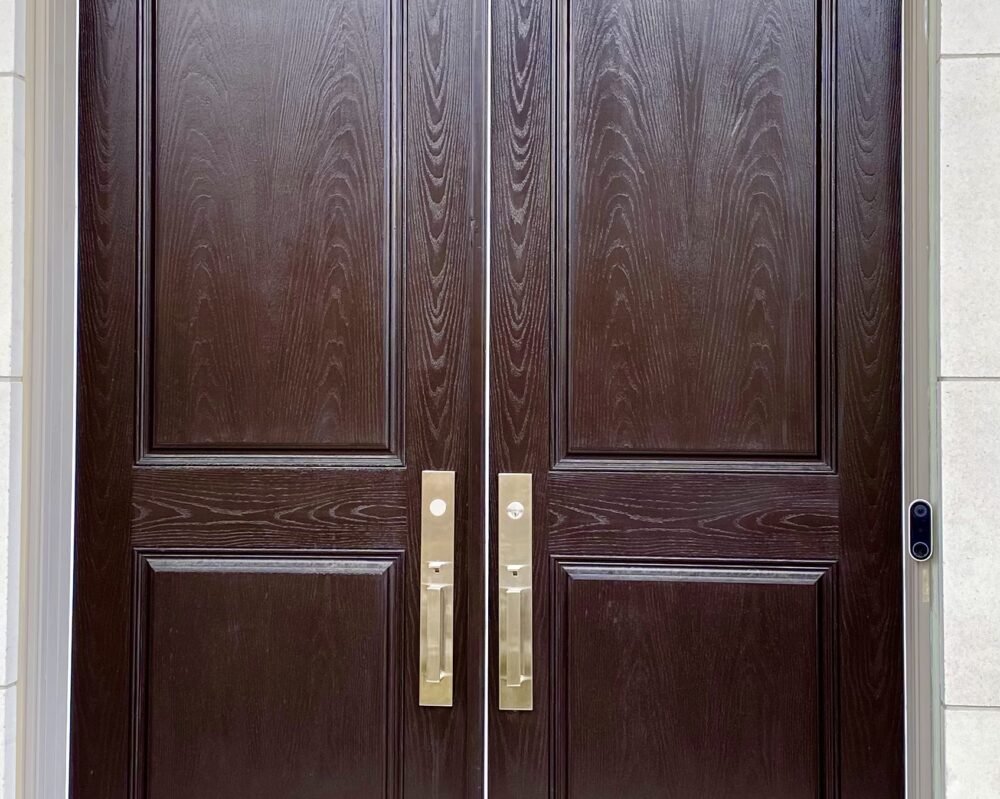

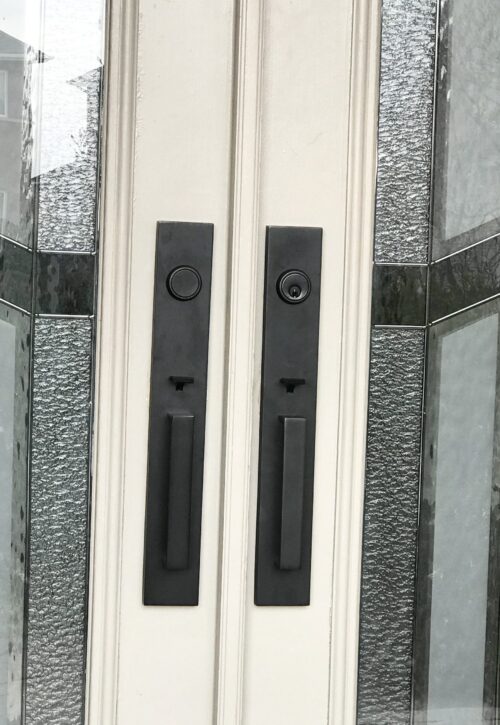

Double Doors HandlesetIf you have a DOUBLE ENTRY DOORS you need to order two handlesets: One is for the active side (Single Door) and one for inactive side (Dummy Door).

Dummy Door Handleset is essentially identical as an active set in the way they are made. They have all of the same hardware except latches. Dummy cylinder is non-operating (blank) and is mounted on the outside of the door. Thumbpiece is also non-operating.

HANDLESETS ARE NOT SOLD AS A PAIRS for double doors.
