Classic Residential Single Cylinder Round Deadbolt

Single Cylinder Function: Single cylinder deadbolt has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. Perfect for securing entrances, side doors.

Available in 2 variations: Keyed Different and Keyed Alike

Keyed Different – locks with Different Keys.                                                                                                                                                  Each lock has its own unique key and can not be open by the others keys from the same locks.

Keyed Alike – when all locks in a set can be opened with the same key. This option is beneficial when multiple locks are use by the same person so that only one key needs to be used.

• Fits standard door preparation
• Door Thickness: 1 3/8″(35 mm) or 1 3/4″(44,5 mm)

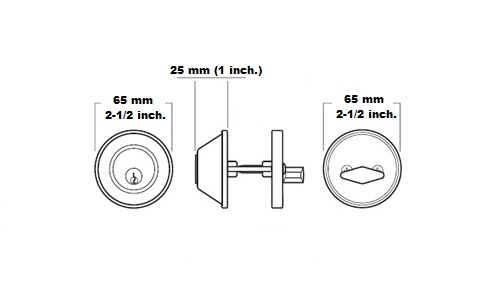

• Diameter: 2 1/2″ (65 mm)
• Latch has square corner faceplate: 1″(25 mm) x 2 1/4″(57 mm)
• Backset: Adjustable for 2 3/8″(60 mm) or 2 3/4″(70 mm)
• Deadbolt type: Single Cylinder
• Cylinder: 5 Pin
• Includes 2 keys
• Strike plate, mounting hardware are included
• All metal construction for long lasting performance
• Guide Post for Easy Installation
• Includes all required hardware for complete installation

Classic Round Deadbolt PDF
