Deadbolt Residential Single Cylinder Square

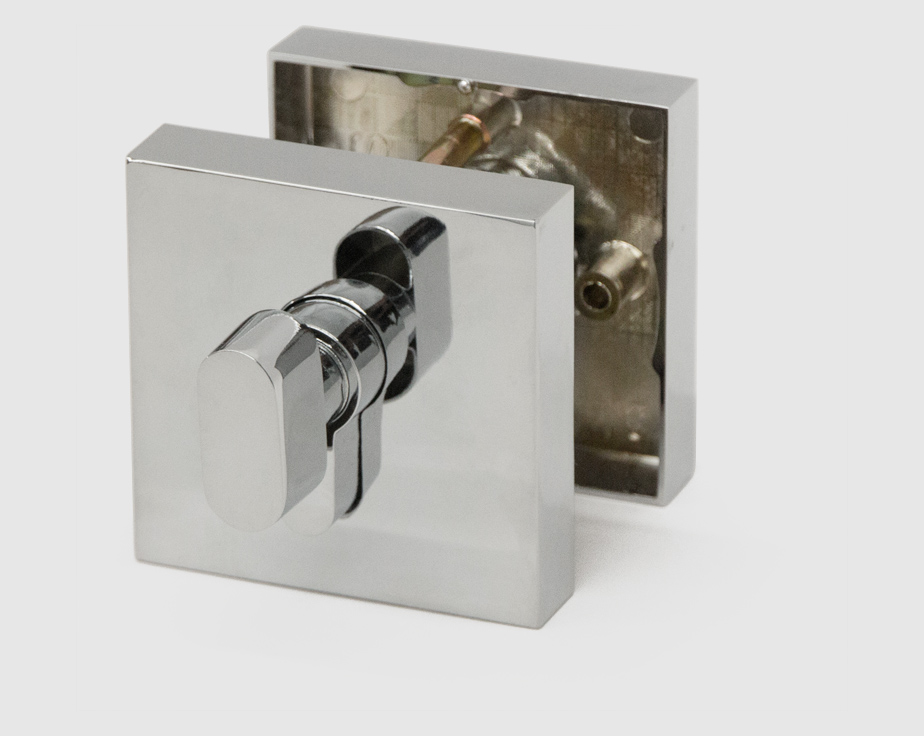

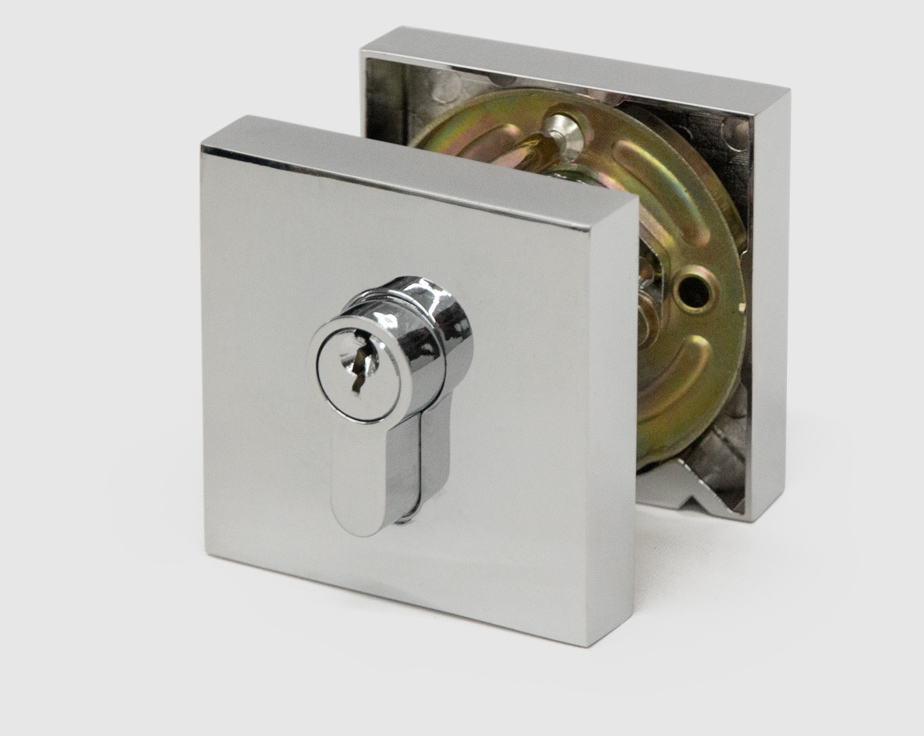

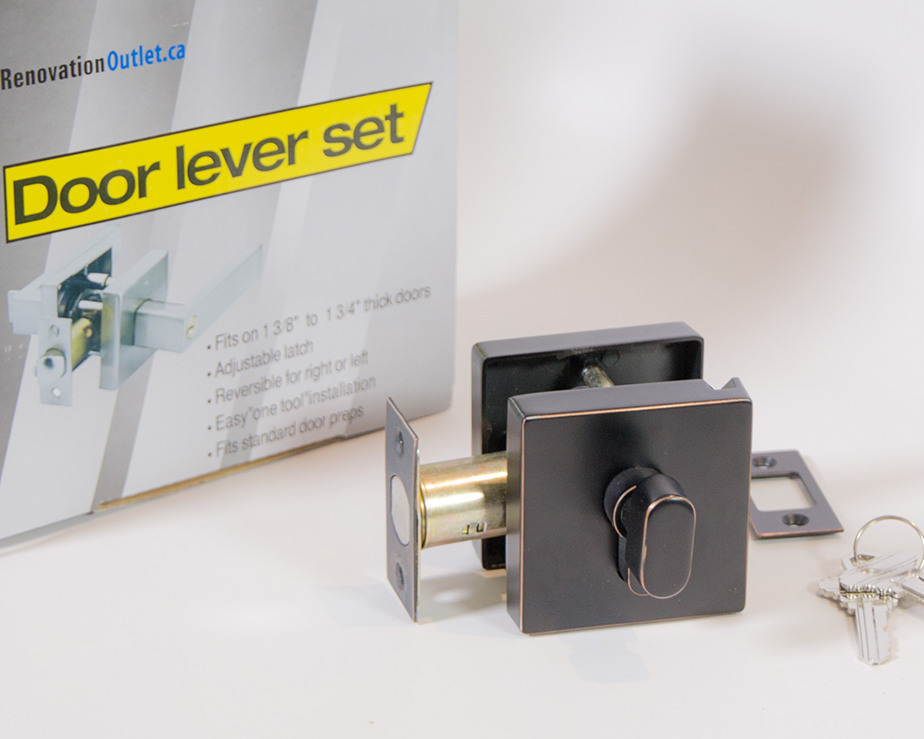

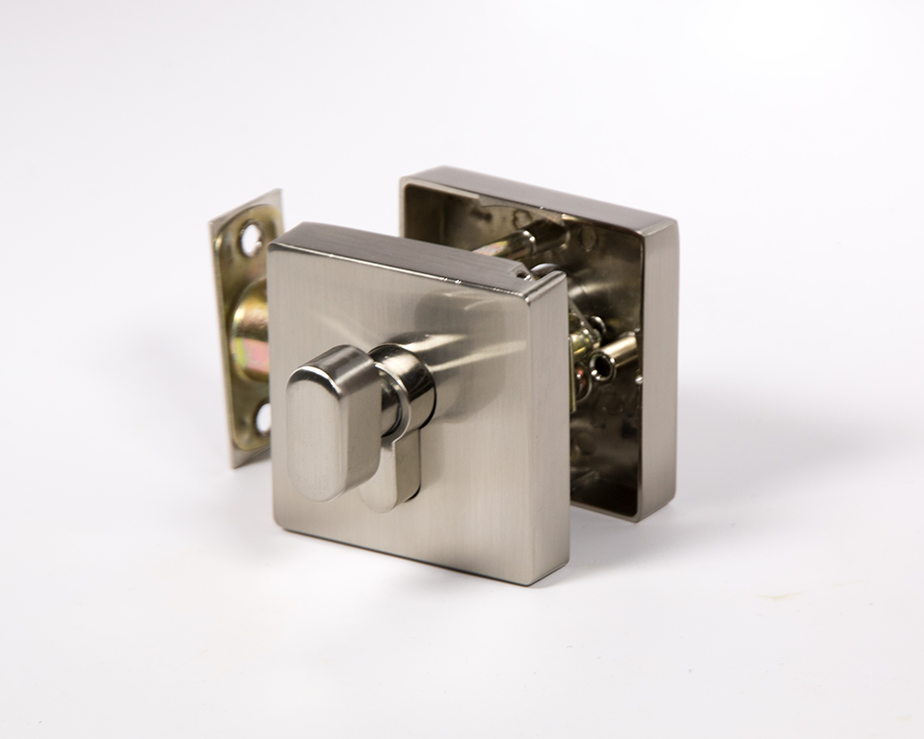

Single Cylinder Function: Single cylinder deadbolt has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior.

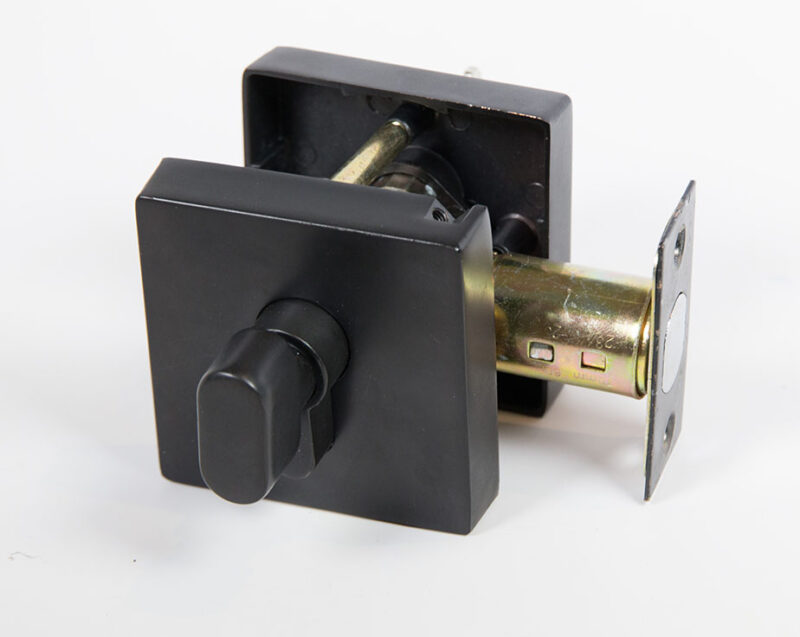

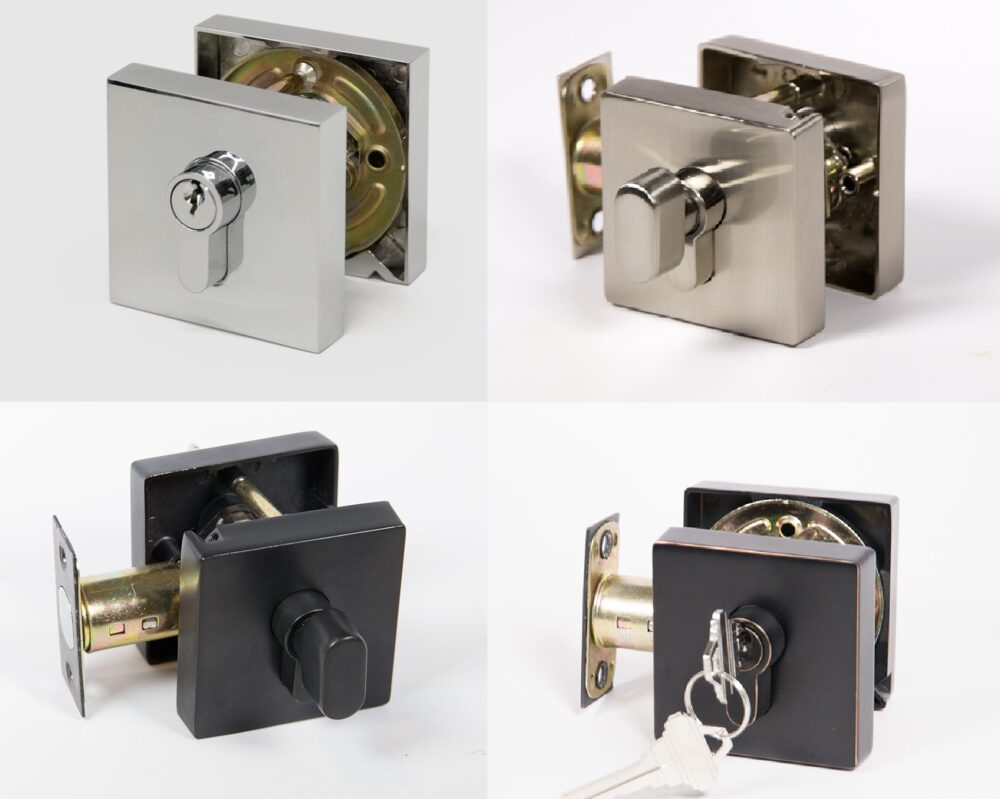

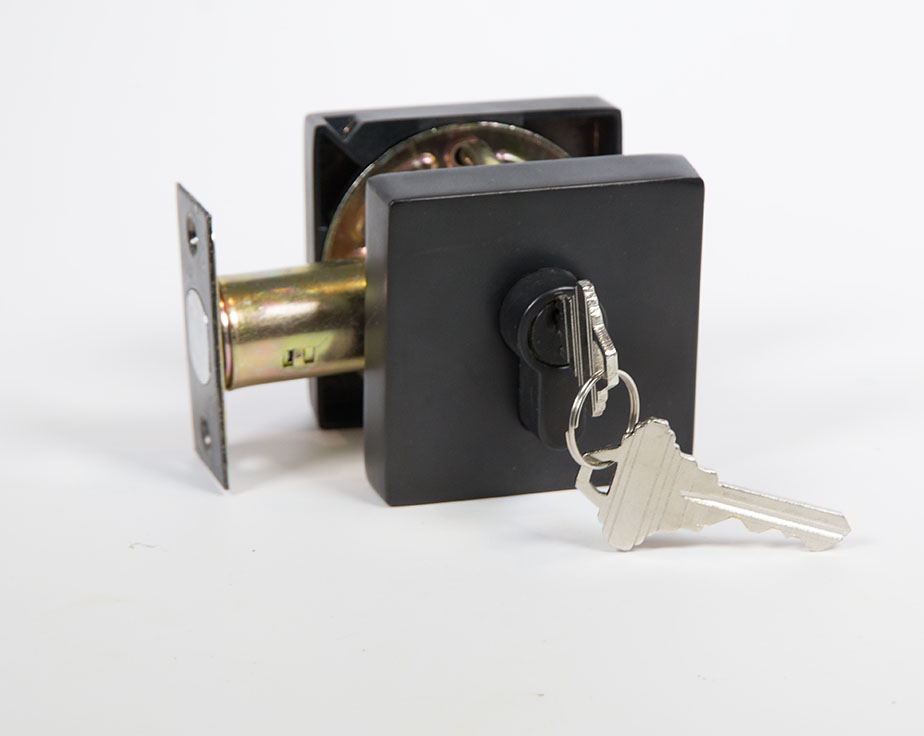

Available in following finishes: Satin Nickel, Black Matte, Oil-Rubbed Bronze, Polished Chrome

Available in 2 variations: Keyed Different and Keyed Alike

Keyed Different – locks with Different Keys.                                                                                                                                                  Each lock has its own unique key and can not be open by the others keys from the same locks.

Keyed Alike – when all locks in a set can be opened with the same key. This option is beneficial when multiple locks are use by the same person so that only one key needs to be used.

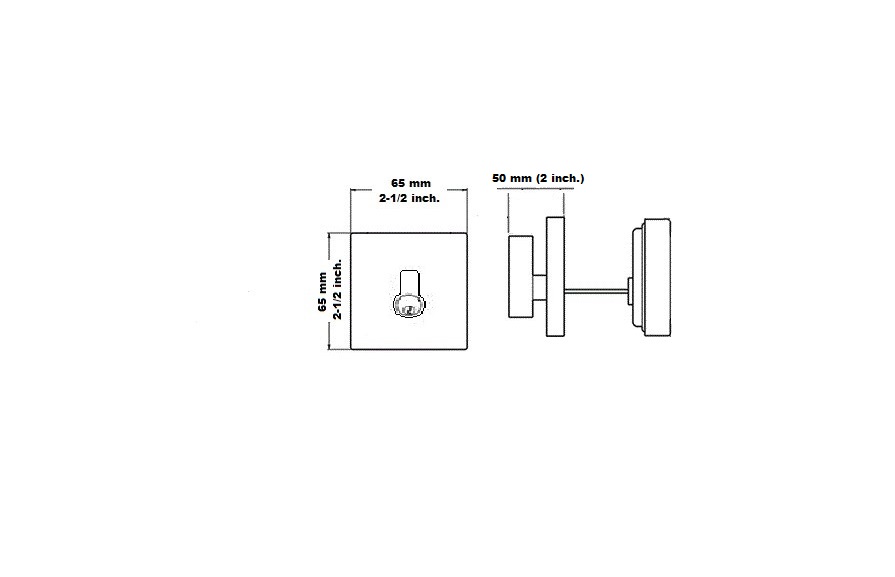

• Size: 2 1/2″ (65 mm) x 2 1/2″ (65mm)
• Latch has square corner faceplate: 1″ (25mm) x 2 1/4″ (57mm)
• Backset: Adjustable for 2 3/8″ (60mm) or 2 3/4″ (70mm)
• Door thickness range: 1 3/8” (35mm) to 1 3/4” (44,5mm)
• Deadbolt type: Single Cylinder
• Includes 2 keys

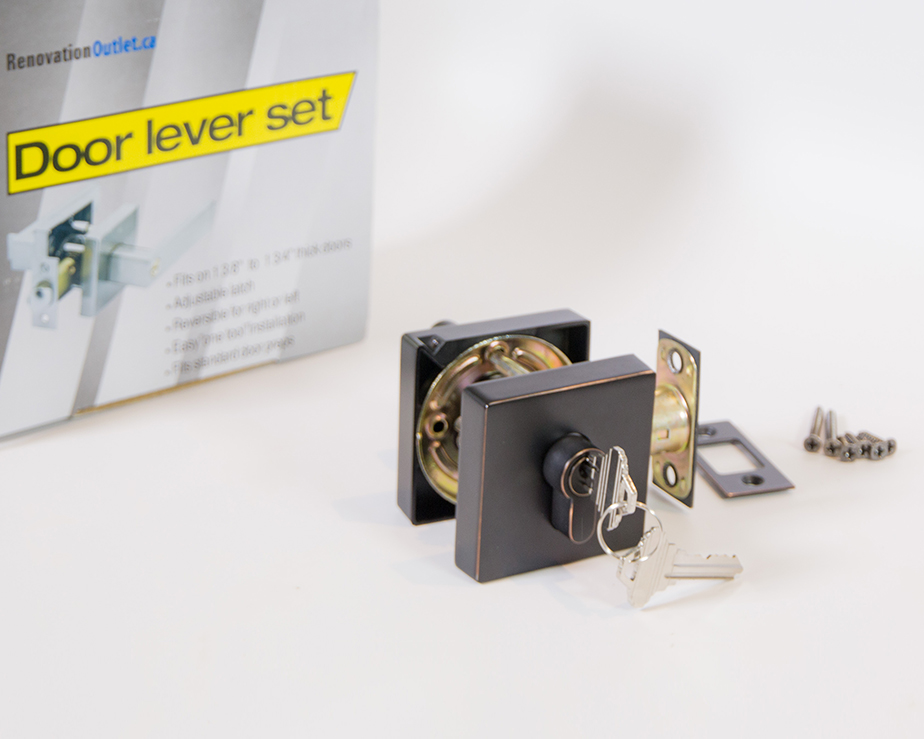

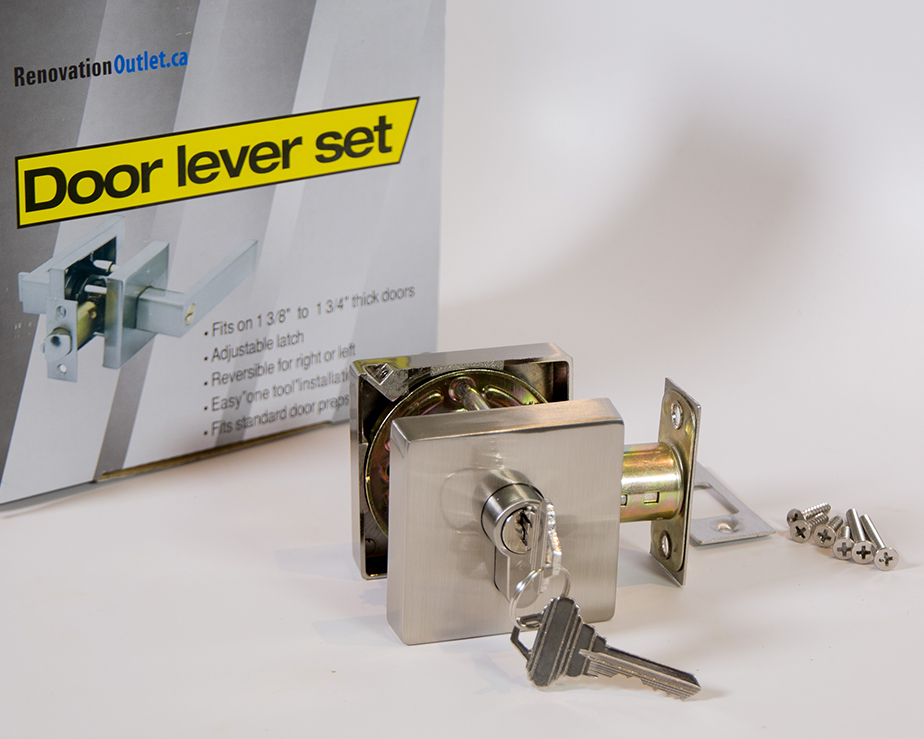

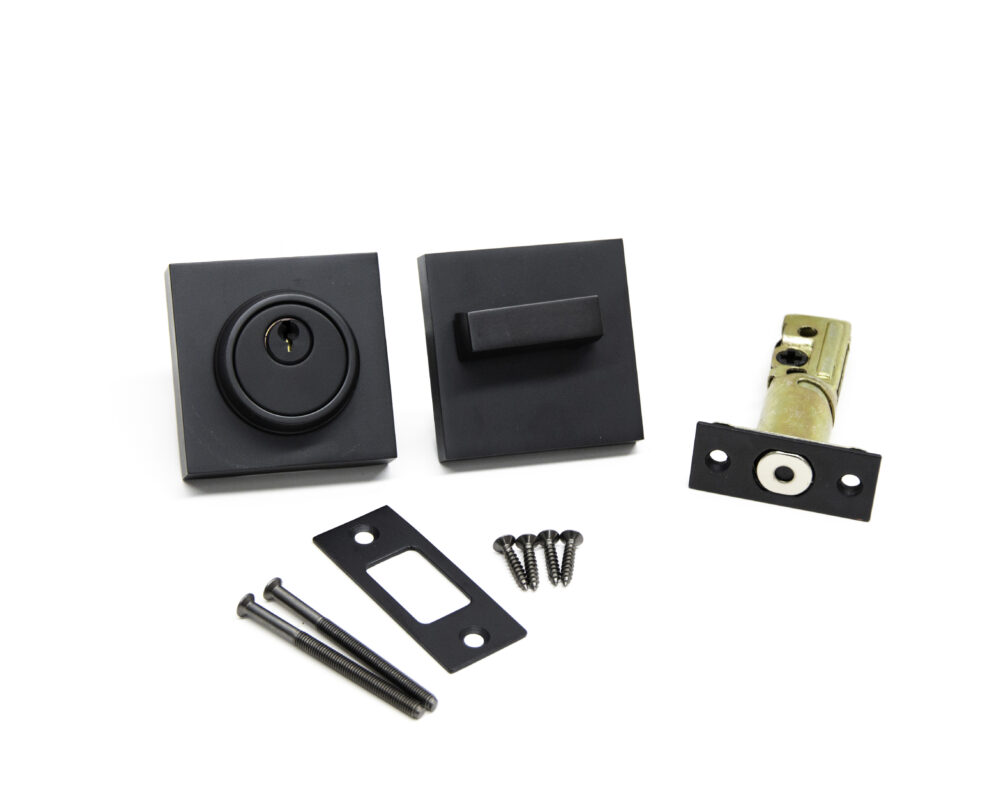

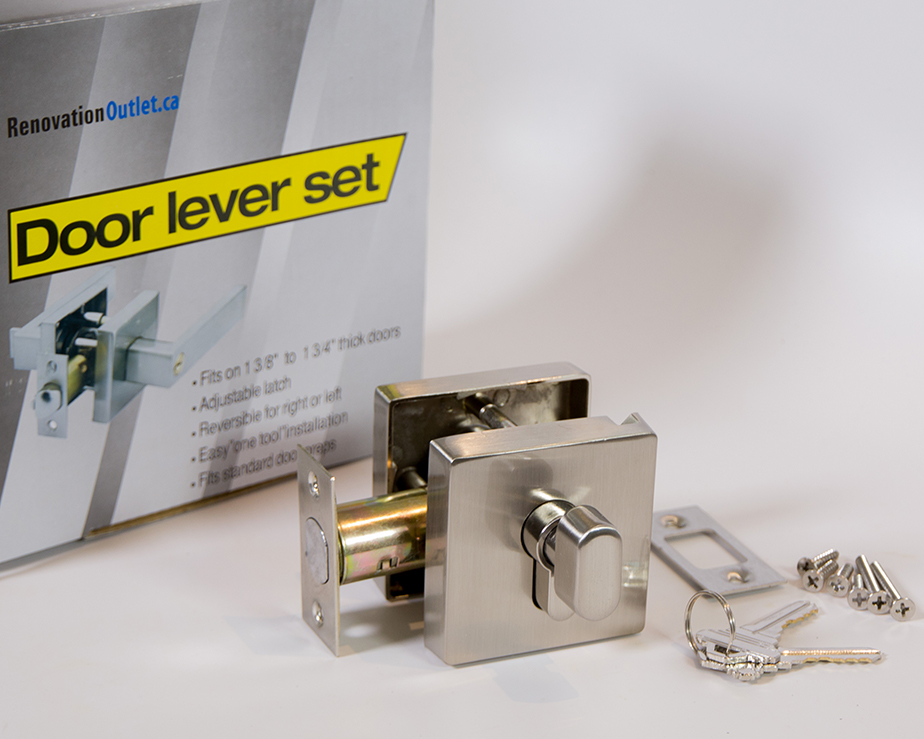

• Strike plate, mounting hardware are included
• All metal construction for long lasting performance
• Easy Installation

Deadbolt square PDF
